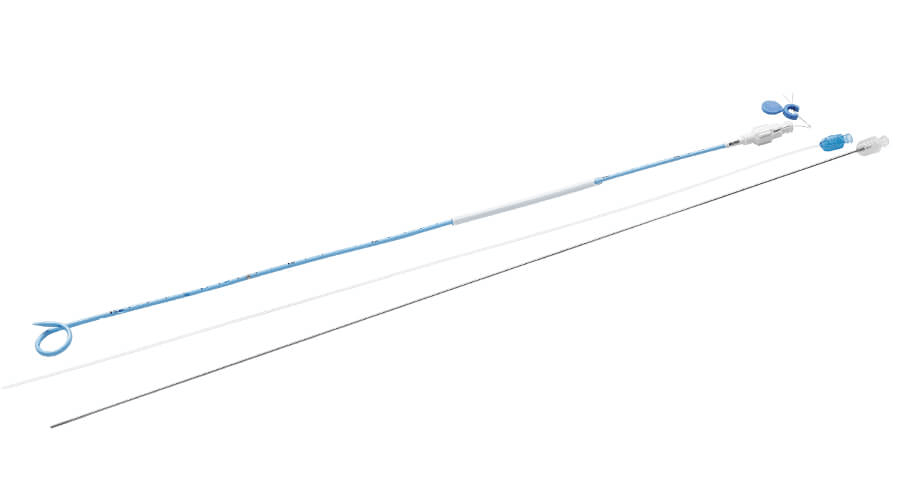

經膽道引流管組附顯影金屬環(BT-PDS-series-W(B)-RB;BT-PDS-series(B)-RB)

BT-PDS-series-W(B)-RB;BT-PDS-series(B)-RB
經膽道引流管組附顯影金屬環(BT-PDS-series-W(B)-RB;BT-PDS-series(B)-RB)



  • 應用於膽道引流。
  • 此型導管是採用Seldinger穿刺技術的方式置放於體內引流處,附顯影金屬環(BT-PDS-series(B))-RB)。
  • 帶線導管附有容易使用且可靠的安全線扣裝置,可以讓導管穩固於引流處。
  • 導管表面之親水塗層降低導管穿刺的摩擦力，使導管易於導入。
  • 導管前端大的橢圓引流孔,可增加引流能力。
  • 引流導管組採用無菌消毒袋包裝, 限一次性使用 。

    每一套組包含:

    • 帶線或不帶線附顯影金屬環膽道引流管
    • 導直管
    • 軟套管
    • 硬套管
產品線稿
規格

帶線

型號 尺寸 容許最大導絲線徑 工作長度 型號 尺寸 容許最大導絲線徑
BT-PDS-0620-W(B)-RB 6F .035 inch (0.89mm) 19 cm (XX=20) BT-PDS-1020-W(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0625-W(B)-RB 6F .035 inch (0.89mm) 24 cm (XX=25) BT-PDS-1025-W(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0630-W(B)-RB 6F .035 inch (0.89mm) 29 cm (XX=30) BT-PDS-1030-W(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0635-W(B)-RB 6F .035 inch (0.89mm) 34 cm (XX=35) BT-PDS-1035-W(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0640-W(B)-RB 6F .035 inch (0.89mm) 39 cm (XX=40) BT-PDS-1040-W(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0645-W(B)-RB 6F .035 inch (0.89mm) 44 cm (XX=45) BT-PDS-1045-W(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0650-W(B)-RB 6F .035 inch (0.89mm) 49 cm (XX=50) BT-PDS-1050-W(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0720-W(B)-RB 7F .035 inch (0.89mm) 19 cm (XX=20) BT-PDS-1220-W(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0725-W(B)-RB 7F .035 inch (0.89mm) 24 cm (XX=25) BT-PDS-1225-W(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0730-W(B)-RB 7F .035 inch (0.89mm) 29 cm (XX=30) BT-PDS-1230-W(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0735-W(B)-RB 7F .035 inch (0.89mm) 34 cm (XX=35) BT-PDS-1235-W(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0740-W(B)-RB 7F .035 inch (0.89mm) 39 cm (XX=40) BT-PDS-1240-W(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0745-W(B)-RB 7F .035 inch (0.89mm) 44 cm (XX=45) BT-PDS-1245-W(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0750-W(B)-RB 7F .035 inch (0.89mm) 49 cm (XX=50) BT-PDS-1250-W(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0820-W(B)-RB 8F .038 inch (0.97mm) 19 cm (XX=20) BT-PDS-1420-W(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0825-W(B)-RB 8F .038 inch (0.97mm) 24 cm (XX=25) BT-PDS-1425-W(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0830-W(B)-RB 8F .038 inch (0.97mm) 29 cm (XX=30) BT-PDS-1430-W(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0835-W(B)-RB 8F .038 inch (0.97mm) 34 cm (XX=35) BT-PDS-1435-W(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0840-W(B)-RB 8F .038 inch (0.97mm) 39 cm (XX=40) BT-PDS-1440-W(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0845-W(B)-RB 8F .038 inch (0.97mm) 44 cm (XX=45) BT-PDS-1445-W(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0850-W(B)-RB 8F .038 inch (0.97mm) 49 cm (XX=50) BT-PDS-1450-W(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0920-W(B)-RB 9F .038 inch (0.97mm) 19 cm (XX=20)
BT-PDS-0925-W(B)-RB 9F .038 inch (0.97mm) 24 cm (XX=25)
BT-PDS-0930-W(B)-RB 9F .038 inch (0.97mm) 29 cm (XX=30)
BT-PDS-0935-W(B)-RB 9F .038 inch (0.97mm) 34 cm (XX=35)
BT-PDS-0940-W(B)-RB 9F .038 inch (0.97mm) 39 cm (XX=40)
BT-PDS-0945-W(B)-RB 9F .038 inch (0.97mm) 44 cm (XX=45)
BT-PDS-0950-W(B)-RB 9F .038 inch (0.97mm) 49 cm (XX=50)

註: 符合國際CE認證

不帶線

型號 尺寸 容許最大導絲線徑 工作長度 型號 尺寸 容許最大導絲線徑
BT-PDS-0620(B)-RB 6F .035 inch (0.89mm) 19 cm (XX=20) BT-PDS-1020(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0625(B)-RB 6F .035 inch (0.89mm) 24 cm (XX=25) BT-PDS-1025(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0630(B)-RB 6F .035 inch (0.89mm) 29 cm (XX=30) BT-PDS-1030(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0635(B)-RB 6F .035 inch (0.89mm) 34 cm (XX=35) BT-PDS-1035(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0640(B)-RB 6F .035 inch (0.89mm) 39 cm (XX=40) BT-PDS-1040(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0645(B)-RB 6F .035 inch (0.89mm) 44 cm (XX=45) BT-PDS-1045(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0650(B)-RB 6F .035 inch (0.89mm) 49 cm (XX=50) BT-PDS-1050(B)-RB 10F .038 inch (0.97mm)
BT-PDS-0720(B)-RB 7F .035 inch (0.89mm) 19 cm (XX=20) BT-PDS-1220(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0725(B)-RB 7F .035 inch (0.89mm) 24 cm (XX=25) BT-PDS-1225(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0730(B)-RB 7F .035 inch (0.89mm) 29 cm (XX=30) BT-PDS-1230(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0735(B)-RB 7F .035 inch (0.89mm) 34 cm (XX=35) BT-PDS-1235(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0740(B)-RB 7F .035 inch (0.89mm) 39 cm (XX=40) BT-PDS-1240(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0745(B)-RB 7F .035 inch (0.89mm) 44 cm (XX=45) BT-PDS-1245(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0750(B)-RB 7F .035 inch (0.89mm) 49 cm (XX=50) BT-PDS-1250(B)-RB 12F .038 inch (0.97mm)
BT-PDS-0820(B)-RB 8F .038 inch (0.97mm) 19 cm (XX=20) BT-PDS-1420(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0825(B)-RB 8F .038 inch (0.97mm) 24 cm (XX=25) BT-PDS-1425(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0830(B)-RB 8F .038 inch (0.97mm) 29 cm (XX=30) BT-PDS-1430(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0835(B)-RB 8F .038 inch (0.97mm) 34 cm (XX=35) BT-PDS-1435(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0840(B)-RB 8F .038 inch (0.97mm) 39 cm (XX=40) BT-PDS-1440(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0845(B)-RB 8F .038 inch (0.97mm) 44 cm (XX=45) BT-PDS-1445(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0850(B)-RB 8F .038 inch (0.97mm) 49 cm (XX=50) BT-PDS-1450(B)-RB 14F .038 inch (0.97mm)
BT-PDS-0920(B)-RB 9F .038 inch (0.97mm) 19 cm (XX=20)
BT-PDS-0925(B)-RB 9F .038 inch (0.97mm) 24 cm (XX=25)
BT-PDS-0930(B)-RB 9F .038 inch (0.97mm) 29 cm (XX=30)
BT-PDS-0935(B)-RB 9F .038 inch (0.97mm) 34 cm (XX=35)
BT-PDS-0940(B)-RB 9F .038 inch (0.97mm) 39 cm (XX=40)
BT-PDS-0945(B)-RB 9F .038 inch (0.97mm) 44 cm (XX=45)
BT-PDS-0950(B)-RB 9F .038 inch (0.97mm) 49 cm (XX=50)

註: 符合國際CE認證
