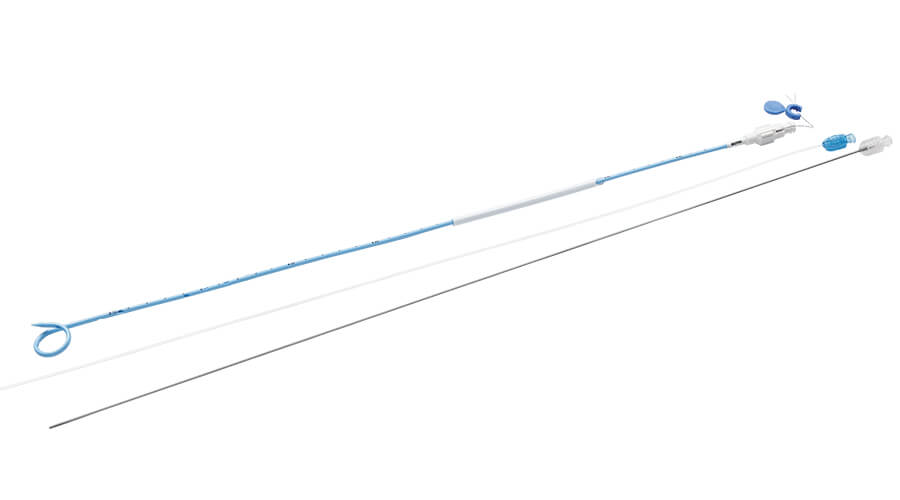

膽道引流管組(BT-PDS-series-W(B);BT-PDS-series(B))
- 應用於膽道引流。
- 此型導管是採用Seldinger穿刺技術的方式置放於體內引流處,不附顯影金屬環。
- 帶線導管附有容易使用且可靠的安全線扣裝置,可以讓導管穩固於引流處。
- 導管表面之親水塗層降低導管穿刺的摩擦力，使導管易於導入。
- 導管前端大的橢圓引流孔,可增加引流能力。
- 引流導管組採用無菌消毒袋包裝, 限一次性使用。
- 帶線或不帶線膽道引流管
- 導直管
- 軟套管
- 硬套管
每一套組包含:

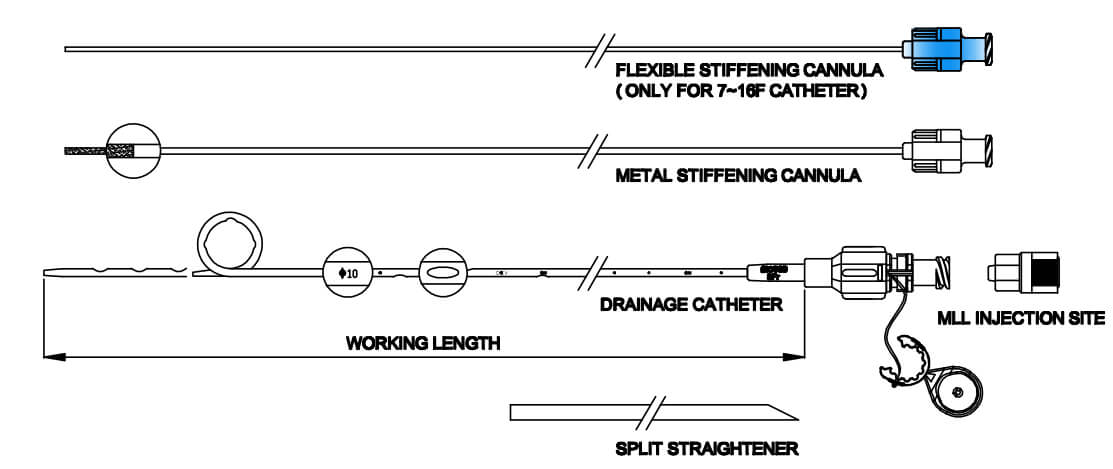

產品線稿
規格
帶線
| 型號 | 尺寸 | 容許最大導絲線徑 | 工作長度 | 型號 | 尺寸 | 容許最大導絲線徑 |
|---|---|---|---|---|---|---|
| BT-PDS-0620-W(B) | 6F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1020-W(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0625-W(B) | 6F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1025-W(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0630-W(B) | 6F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1030-W(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0635-W(B) | 6F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1035-W(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0640-W(B) | 6F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1040-W(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0645-W(B) | 6F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1045-W(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0650-W(B) | 6F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1050-W(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0720-W(B) | 7F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1220-W(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0725-W(B) | 7F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1225-W(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0730-W(B) | 7F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1230-W(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0735-W(B) | 7F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1235-W(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0740-W(B) | 7F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1240-W(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0745-W(B) | 7F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1245-W(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0750-W(B) | 7F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1250-W(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0820-W(B) | 8F | .038 inch (0.97mm) | 19 cm (XX=20) | BT-PDS-1420-W(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0825-W(B) | 8F | .038 inch (0.97mm) | 24 cm (XX=25) | BT-PDS-1425-W(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0830-W(B) | 8F | .038 inch (0.97mm) | 29 cm (XX=30) | BT-PDS-1430-W(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0835-W(B) | 8F | .038 inch (0.97mm) | 34 cm (XX=35) | BT-PDS-1435-W(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0840-W(B) | 8F | .038 inch (0.97mm) | 39 cm (XX=40) | BT-PDS-1440-W(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0845-W(B) | 8F | .038 inch (0.97mm) | 44 cm (XX=45) | BT-PDS-1445-W(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0850-W(B) | 8F | .038 inch (0.97mm) | 49 cm (XX=50) | BT-PDS-1450-W(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0920-W(B) | 9F | .038 inch (0.97mm) | 19 cm (XX=20) | BT-PDS-1620-W(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0925-W(B) | 9F | .038 inch (0.97mm) | 24 cm (XX=25) | BT-PDS-1625-W(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0930-W(B) | 9F | .038 inch (0.97mm) | 29 cm (XX=30) | BT-PDS-1630-W(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0935-W(B) | 9F | .038 inch (0.97mm) | 34 cm (XX=35) | BT-PDS-1635-W(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0940-W(B) | 9F | .038 inch (0.97mm) | 39 cm (XX=40) | BT-PDS-1640-W(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0945-W(B) | 9F | .038 inch (0.97mm) | 44 cm (XX=45) | BT-PDS-1645-W(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0950-W(B) | 9F | .038 inch (0.97mm) | 49 cm (XX=50) | BT-PDS-1650-W(B) | 16F | .038 inch (0.97mm) |
註: 符合國際CE認證
不帶線
| 型號 | 尺寸 | 容許最大導絲線徑 | 工作長度 | 型號 | 尺寸 | 容許最大導絲線徑 |
|---|---|---|---|---|---|---|
| BT-PDS-0620(B) | 6F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1020(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0625(B) | 6F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1025(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0630(B) | 6F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1030(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0635(B) | 6F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1035(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0640(B) | 6F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1040(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0645(B) | 6F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1045(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0650(B) | 6F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1050(B) | 10F | .038 inch (0.97mm) |
| BT-PDS-0720(B) | 7F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1220(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0725(B) | 7F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1225(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0730(B) | 7F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1230(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0735(B) | 7F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1235(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0740(B) | 7F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1240(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0745(B) | 7F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1245(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0750(B) | 7F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1250(B) | 12F | .038 inch (0.97mm) |
| BT-PDS-0820(B) | 8F | .038 inch (0.97mm) | 19 cm (XX=20) | BT-PDS-1420(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0825(B) | 8F | .038 inch (0.97mm) | 24 cm (XX=25) | BT-PDS-1425(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0830(B) | 8F | .038 inch (0.97mm) | 29 cm (XX=30) | BT-PDS-1430(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0835(B) | 8F | .038 inch (0.97mm) | 34 cm (XX=35) | BT-PDS-1435(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0840(B) | 8F | .038 inch (0.97mm) | 39 cm (XX=40) | BT-PDS-1440(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0845(B) | 8F | .038 inch (0.97mm) | 44 cm (XX=45) | BT-PDS-1445(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0850(B) | 8F | .038 inch (0.97mm) | 49 cm (XX=50) | BT-PDS-1450(B) | 14F | .038 inch (0.97mm) |
| BT-PDS-0920(B) | 9F | .038 inch (0.97mm) | 19 cm (XX=20) | BT-PDS-1620(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0925(B) | 9F | .038 inch (0.97mm) | 24 cm (XX=25) | BT-PDS-1625(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0930(B) | 9F | .038 inch (0.97mm) | 29 cm (XX=30) | BT-PDS-1630(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0935(B) | 9F | .038 inch (0.97mm) | 34 cm (XX=35) | BT-PDS-1635(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0940(B) | 9F | .038 inch (0.97mm) | 39 cm (XX=40) | BT-PDS-1640(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0945(B) | 9F | .038 inch (0.97mm) | 44 cm (XX=45) | BT-PDS-1645(B) | 16F | .038 inch (0.97mm) |
| BT-PDS-0950(B) | 9F | .038 inch (0.97mm) | 49 cm (XX=50) | BT-PDS-1650(B) | 16F | .038 inch (0.97mm) |
註: 符合國際CE認證
