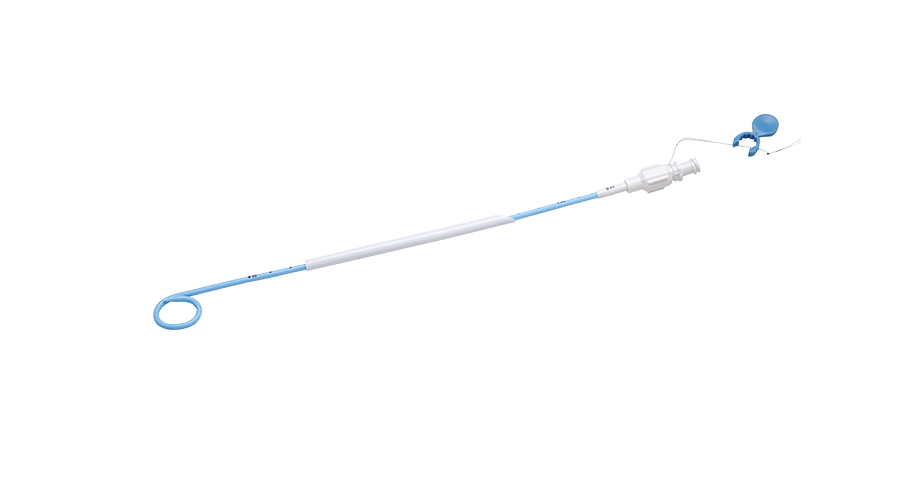

閉環型豬尾巴引流導管 (BT-PD4-series-(CL))

BT-PD4-series-(CL);BT-PD4-series-W(CL)
閉環型豬尾巴引流導管 (BT-PD4-series-(CL))



  • 使用於經皮腎造口術，膿瘍及其它用途的引流。
  • 此型導管是採用直接穿刺技術或採用Seldinger穿刺技術的方式置放於體內引流處。
  • 分帶線導管及不帶線導管
  • 帶線導管附有容易使用且可靠的安全線扣裝置,可以讓導管穩固於引流處。
  • 導管表面之親水塗層降低導管穿刺的摩擦力，使導管易於導入。
  • 導管前端大的橢圓引流孔,可增加引流能力。
  • 引流導管組採用無菌消毒袋包裝, 限一次性使用。

    •

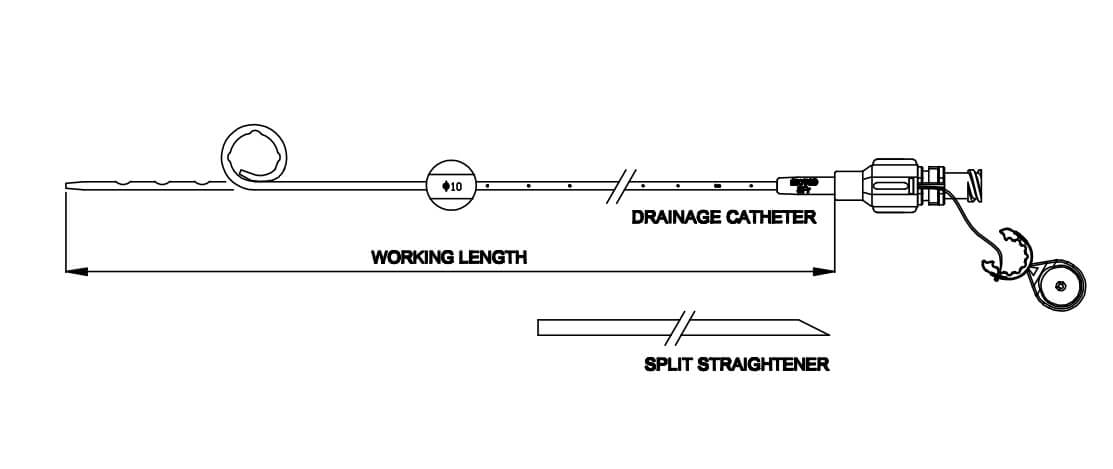

產品線稿
規格

帶線

型號 尺寸 容許最大導絲線徑 工作長度 型號 尺寸 容許最大導絲線徑
BT-PD4-0620-W(CL) 6F .035 inch (0.89mm) 19 cm (XX=20) BT-PD4-1020-W(CL) 10F .038 inch (0.97mm)
BT-PD4-0625-W(CL) 6F .035 inch (0.89mm) 24 cm (XX=25) BT-PD4-1025-W(CL) 10F .038 inch (0.97mm)
BT-PD4-0630-W(CL) 6F .035 inch (0.89mm) 29 cm (XX=30) BT-PD4-1030-W(CL) 10F .038 inch (0.97mm)
BT-PD4-0635-W(CL) 6F .035 inch (0.89mm) 34 cm (XX=35) BT-PD4-1035-W(CL) 10F .038 inch (0.97mm)
BT-PD4-0640-W(CL) 6F .035 inch (0.89mm) 39 cm (XX=40) BT-PD4-1040-W(CL) 10F .038 inch (0.97mm)
BT-PD4-0645-W(CL) 6F .035 inch (0.89mm) 44 cm (XX=45) BT-PD4-1045-W(CL) 10F .038 inch (0.97mm)
BT-PD4-0650-W(CL) 6F .035 inch (0.89mm) 49 cm (XX=50) BT-PD4-1050-W(CL) 10F .038 inch (0.97mm)
BT-PD4-0720-W(CL) 7F .035 inch (0.89mm) 19 cm (XX=20) BT-PD4-1220-W(CL) 12F .038 inch (0.97mm)
BT-PD4-0725-W(CL) 7F .035 inch (0.89mm) 24 cm (XX=25) BT-PD4-1225-W(CL) 12F .038 inch (0.97mm)
BT-PD4-0730-W(CL) 7F .035 inch (0.89mm) 29 cm (XX=30) BT-PD4-1230-W(CL) 12F .038 inch (0.97mm)
BT-PD4-0735-W(CL) 7F .035 inch (0.89mm) 34 cm (XX=35) BT-PD4-1235-W(CL) 12F .038 inch (0.97mm)
BT-PD4-0740-W(CL) 7F .035 inch (0.89mm) 39 cm (XX=40) BT-PD4-1240-W(CL) 12F .038 inch (0.97mm)
BT-PD4-0745-W(CL) 7F .035 inch (0.89mm) 44 cm (XX=45) BT-PD4-1245-W(CL) 12F .038 inch (0.97mm)
BT-PD4-0750-W(CL) 7F .035 inch (0.89mm) 49 cm (XX=50) BT-PD4-1250-W(CL) 12F .038 inch (0.97mm)
BT-PD4-0820-W(CL) 8F .038 inch (0.97mm) 19 cm (XX=20) BT-PD4-1420-W(CL) 14F .038 inch (0.97mm)
BT-PD4-0825-W(CL) 8F .038 inch (0.97mm) 24 cm (XX=25) BT-PD4-1425-W(CL) 14F .038 inch (0.97mm)
BT-PD4-0830-W(CL) 8F .038 inch (0.97mm) 29 cm (XX=30) BT-PD4-1430-W(CL) 14F .038 inch (0.97mm)
BT-PD4-0835-W(CL) 8F .038 inch (0.97mm) 34 cm (XX=35) BT-PD4-1435-W(CL) 14F .038 inch (0.97mm)
BT-PD4-0840-W(CL) 8F .038 inch (0.97mm) 39 cm (XX=40) BT-PD4-1440-W(CL) 14F .038 inch (0.97mm)
BT-PD4-0845-W(CL) 8F .038 inch (0.97mm) 44 cm (XX=45) BT-PD4-1445-W(CL) 14F .038 inch (0.97mm)
BT-PD4-0850-W(CL) 8F .038 inch (0.97mm) 49 cm (XX=50) BT-PD4-1450-W(CL) 14F .038 inch (0.97mm)
BT-PD4-0920-W(CL) 9F .038 inch (0.97mm) 19 cm (XX=20) BT-PD4-1620-W(CL) 16F .038 inch (0.97mm)
BT-PD4-0925-W(CL) 9F .038 inch (0.97mm) 24 cm (XX=25) BT-PD4-1625-W(CL) 16F .038 inch (0.97mm)
BT-PD4-0930-W(CL) 9F .038 inch (0.97mm) 29 cm (XX=30) BT-PD4-1630-W(CL) 16F .038 inch (0.97mm)
BT-PD4-0935-W(CL) 9F .038 inch (0.97mm) 34 cm (XX=35) BT-PD4-1635-W(CL) 16F .038 inch (0.97mm)
BT-PD4-0940-W(CL) 9F .038 inch (0.97mm) 39 cm (XX=40) BT-PD4-1640-W(CL) 16F .038 inch (0.97mm)
BT-PD4-0945-W(CL) 9F .038 inch (0.97mm) 44 cm (XX=45) BT-PD4-1645-W(CL) 16F .038 inch (0.97mm)
BT-PD4-0950-W(CL) 9F .038 inch (0.97mm) 49 cm (XX=50) BT-PD4-1650-W(CL) 16F .038 inch (0.97mm)

註: 符合國際CE認證

不帶線

型號 尺寸 容許最大導絲線徑 工作長度 型號 尺寸 容許最大導絲線徑
BT-PD4-0520(CL) 5F .035 inch (0.89mm) 19 cm (XX=20) BT-PD4-1020(CL) 10F .038 inch (0.97mm)
BT-PD4-0525(CL) 5F .035 inch (0.89mm) 24 cm (XX=25) BT-PD4-1025(CL) 10F .038 inch (0.97mm)
BT-PD4-0530(CL) 5F .035 inch (0.89mm) 29 cm (XX=30) BT-PD4-1030(CL) 10F .038 inch (0.97mm)
BT-PD4-0535(CL) 5F .035 inch (0.89mm) 34 cm (XX=35) BT-PD4-1035(CL) 10F .038 inch (0.97mm)
BT-PD4-0540(CL) 5F .035 inch (0.89mm) 39 cm (XX=40) BT-PD4-1040(CL) 10F .038 inch (0.97mm)
BT-PD4-0545(CL) 5F .035 inch (0.89mm) 44 cm (XX=45) BT-PD4-1045(CL) 10F .038 inch (0.97mm)
BT-PD4-0550(CL) 5F .035 inch (0.89mm) 49 cm (XX=50) BT-PD4-1050(MN) 10F .038 inch (0.97mm)
BT-PD4-0620(CL) 6F .035 inch (0.89mm) 19 cm (XX=20) BT-PD4-1220(MN) 12F .038 inch (0.97mm)
BT-PD4-0625(CL) 6F .035 inch (0.89mm) 24 cm (XX=25) BT-PD4-1225(MN) 12F .038 inch (0.97mm)
BT-PD4-0630(CL) 6F .035 inch (0.89mm) 29 cm (XX=30) BT-PD4-1230(MN) 12F .038 inch (0.97mm)
BT-PD4-0635(CL) 6F .035 inch (0.89mm) 34 cm (XX=35) BT-PD4-1235(MN) 12F .038 inch (0.97mm)
BT-PD4-0640(CL) 6F .035 inch (0.89mm) 39 cm (XX=40) BT-PD4-1240(MN) 12F .038 inch (0.97mm)
BT-PD4-0645(CL) 6F .035 inch (0.89mm) 44 cm (XX=45) BT-PD4-1245(MN) 12F .038 inch (0.97mm)
BT-PD4-0650(CL) 6F .035 inch (0.89mm) 49 cm (XX=50) BT-PD4-1250(MN) 12F .038 inch (0.97mm)
BT-PD4-0720(CL) 7F .035 inch (0.89mm) 19 cm (XX=20) BT-PD4-1420(MN) 14F .038 inch (0.97mm)
BT-PD4-0725(CL) 7F .035 inch (0.89mm) 24 cm (XX=25) BT-PD4-1425(MN) 14F .038 inch (0.97mm)
BT-PD4-0730(CL) 7F .035 inch (0.89mm) 29 cm (XX=30) BT-PD4-1430(MN) 14F .038 inch (0.97mm)
BT-PD4-0735(CL) 7F .035 inch (0.89mm) 34 cm (XX=35) BT-PD4-1435(MN) 14F .038 inch (0.97mm)
BT-PD4-0740(CL) 7F .035 inch (0.89mm) 39 cm (XX=40) BT-PD4-1440(MN) 14F .038 inch (0.97mm)
BT-PD4-0745(CL) 7F .035 inch (0.89mm) 44 cm (XX=45) BT-PD4-1445(MN) 14F .038 inch (0.97mm)
BT-PD4-0750(CL) 7F .035 inch (0.89mm) 49 cm (XX=50) BT-PD4-1450(MN) 14F .038 inch (0.97mm)
BT-PD4-0820(CL) 8F .038 inch (0.97mm) 19 cm (XX=20) BT-PD4-1620(MN) 16F .038 inch (0.97mm)
BT-PD4-0825(CL) 8F .038 inch (0.97mm) 24 cm (XX=25) BT-PD4-1625(MN) 16F .038 inch (0.97mm)
BT-PD4-0830(CL) 8F .038 inch (0.97mm) 29 cm (XX=30) BT-PD4-1630(MN) 16F .038 inch (0.97mm)
BT-PD4-0835(CL) 8F .038 inch (0.97mm) 34 cm (XX=35) BT-PD4-1635(MN) 16F .038 inch (0.97mm)
BT-PD4-0840(CL) 8F .038 inch (0.97mm) 39 cm (XX=40) BT-PD4-1640(MN) 16F .038 inch (0.97mm)
BT-PD4-0845(CL) 8F .038 inch (0.97mm) 44 cm (XX=45) BT-PD4-1645(MN) 16F .038 inch (0.97mm)
BT-PD4-0850(CL) 8F .038 inch (0.97mm) 49 cm (XX=50) BT-PD4-1650(MN) 16F .038 inch (0.97mm)
BT-PD4-0920(CL) 9F .038 inch (0.97mm) 19 cm (XX=20)
BT-PD4-0925(CL) 9F .038 inch (0.97mm) 24 cm (XX=25)
BT-PD4-0930(CL) 9F .038 inch (0.97mm) 29 cm (XX=30)
BT-PD4-0935(CL) 9F .038 inch (0.97mm) 34 cm (XX=35)
BT-PD4-0940(CL) 9F .038 inch (0.97mm) 39 cm (XX=40)
BT-PD4-0945(CL) 9F .038 inch (0.97mm) 44 cm (XX=45)
BT-PD4-0950(CL) 9F .038 inch (0.97mm) 49 cm (XX=50)

註: 符合國際CE認證

下載
Description
4.2.2 Close-loop Pigtail Type Catheter
