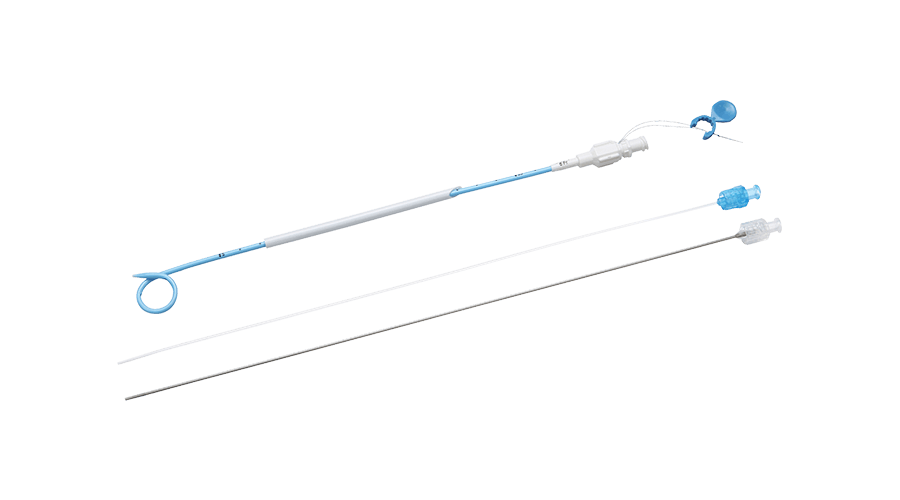

豬尾巴型引流導管組 (BT-PDS-series)
- 使用於經皮腎造口術，膿瘍及其它用途的引流。
- 此型導管是採用直接穿刺技術(BT-PD1-series)的方式置放於體內引流處。
- 帶線導管附有容易使用且可靠的安全線扣裝置,可以讓導管穩固於引流處。
- 導管表面之親水塗層降低導管穿刺的摩擦力，使導管易於導入。
- 導管前端大的橢圓引流孔,可增加引流能力。
- 引流導管組採用無菌消毒袋包裝, 限一次性使用。
- 帶線或不帶線引流導管
- 導直管
- 軟套管
- 硬套管
每一套組包含:

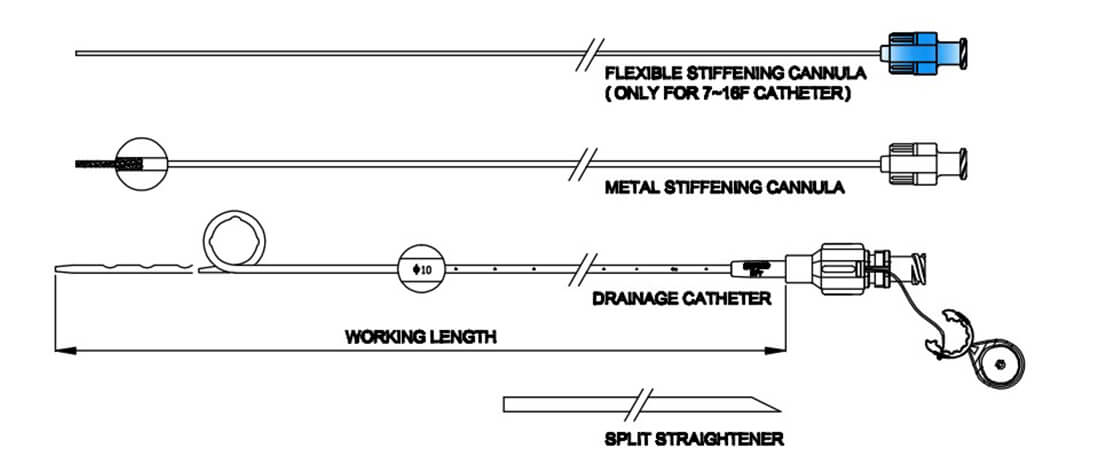

產品線稿
規格
帶線
| 型號 | 尺寸 | 容許最大導絲線徑 | 工作長度 | 型號 | 尺寸 | 容許最大導絲線徑 |
|---|---|---|---|---|---|---|
| BT-PDS-0620-W | 6F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1020-W | 10F | .038 inch (0.97mm) |
| BT-PDS-0625-W | 6F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1025-W | 10F | .038 inch (0.97mm) |
| BT-PDS-0630-W | 6F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1030-W | 10F | .038 inch (0.97mm) |
| BT-PDS-0635-W | 6F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1035-W | 10F | .038 inch (0.97mm) |
| BT-PDS-0640-W | 6F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1040-W | 10F | .038 inch (0.97mm) |
| BT-PDS-0645-W | 6F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1045-W | 10F | .038 inch (0.97mm) |
| BT-PDS-0650-W | 6F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1050-W | 10F | .038 inch (0.97mm) |
| BT-PDS-0720-W | 7F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1220-W | 12F | .038 inch (0.97mm) |
| BT-PDS-0725-W | 7F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1225-W | 12F | .038 inch (0.97mm) |
| BT-PDS-0730-W | 7F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1230-W | 12F | .038 inch (0.97mm) |
| BT-PDS-0735-W | 7F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1235-W | 12F | .038 inch (0.97mm) |
| BT-PDS-0740-W | 7F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1240-W | 12F | .038 inch (0.97mm) |
| BT-PDS-0745-W | 7F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1245-W | 12F | .038 inch (0.97mm) |
| BT-PDS-0750-W | 7F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1250-W | 12F | .038 inch (0.97mm) |
| BT-PDS-0820-W | 8F | .038 inch (0.97mm) | 19 cm (XX=20) | BT-PDS-1420-W | 14F | .038 inch (0.97mm) |
| BT-PDS-0825-W | 8F | .038 inch (0.97mm) | 24 cm (XX=25) | BT-PDS-1425-W | 14F | .038 inch (0.97mm) |
| BT-PDS-0830-W | 8F | .038 inch (0.97mm) | 29 cm (XX=30) | BT-PDS-1430-W | 14F | .038 inch (0.97mm) |
| BT-PDS-0835-W | 8F | .038 inch (0.97mm) | 34 cm (XX=35) | BT-PDS-1435-W | 14F | .038 inch (0.97mm) |
| BT-PDS-0840-W | 8F | .038 inch (0.97mm) | 39 cm (XX=40) | BT-PDS-1440-W | 14F | .038 inch (0.97mm) |
| BT-PDS-0845-W | 8F | .038 inch (0.97mm) | 44 cm (XX=45) | BT-PDS-1445-W | 14F | .038 inch (0.97mm) |
| BT-PDS-0850-W | 8F | .038 inch (0.97mm) | 49 cm (XX=50) | BT-PDS-1450-W | 14F | .038 inch (0.97mm) |
| BT-PDS-0920-W | 9F | .038 inch (0.97mm) | 19 cm (XX=20) | BT-PDS-1620-W | 16F | .038 inch (0.97mm) |
| BT-PDS-0925-W | 9F | .038 inch (0.97mm) | 24 cm (XX=25) | BT-PDS-1625-W | 16F | .038 inch (0.97mm) |
| BT-PDS-0930-W | 9F | .038 inch (0.97mm) | 29 cm (XX=30) | BT-PDS-1630-W | 16F | .038 inch (0.97mm) |
| BT-PDS-0935-W | 9F | .038 inch (0.97mm) | 34 cm (XX=35) | BT-PDS-1635-W | 16F | .038 inch (0.97mm) |
| BT-PDS-0940-W | 9F | .038 inch (0.97mm) | 39 cm (XX=40) | BT-PDS-1640-W | 16F | .038 inch (0.97mm) |
| BT-PDS-0945-W | 9F | .038 inch (0.97mm) | 44 cm (XX=45) | BT-PDS-1645-W | 16F | .038 inch (0.97mm) |
| BT-PDS-0950-W | 9F | .038 inch (0.97mm) | 49 cm (XX=50) | BT-PDS-1650-W | 16F | .038 inch (0.97mm) |
註: 符合國際CE認證
不帶線
| 型號 | 尺寸 | 容許最大導絲線徑 | 工作長度 | 型號 | 尺寸 | 容許最大導絲線徑 |
|---|---|---|---|---|---|---|
| BT-PDS-0520 | 5F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1020 | 10F | .038 inch (0.97mm) |
| BT-PDS-0525 | 5F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1025 | 10F | .038 inch (0.97mm) |
| BT-PDS-0530 | 5F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1030 | 10F | .038 inch (0.97mm) |
| BT-PDS-0535 | 5F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1035 | 10F | .038 inch (0.97mm) |
| BT-PDS-0540 | 5F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1040 | 10F | .038 inch (0.97mm) |
| BT-PDS-0545 | 5F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1045 | 10F | .038 inch (0.97mm) |
| BT-PDS-0550 | 5F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1050 | 10F | .038 inch (0.97mm) |
| BT-PDS-0620 | 6F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1220 | 12F | .038 inch (0.97mm) |
| BT-PDS-0625 | 6F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1225 | 12F | .038 inch (0.97mm) |
| BT-PDS-0630 | 6F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1230 | 12F | .038 inch (0.97mm) |
| BT-PDS-0635 | 6F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1235 | 12F | .038 inch (0.97mm) |
| BT-PDS-0640 | 6F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1240 | 12F | .038 inch (0.97mm) |
| BT-PDS-0645 | 6F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1245 | 12F | .038 inch (0.97mm) |
| BT-PDS-0650 | 6F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1250 | 12F | .038 inch (0.97mm) |
| BT-PDS-0720 | 7F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PDS-1420 | 14F | .038 inch (0.97mm) |
| BT-PDS-0725 | 7F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PDS-1425 | 14F | .038 inch (0.97mm) |
| BT-PDS-0730 | 7F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PDS-1430 | 14F | .038 inch (0.97mm) |
| BT-PDS-0735 | 7F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PDS-1435 | 14F | .038 inch (0.97mm) |
| BT-PDS-0740 | 7F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PDS-1440 | 14F | .038 inch (0.97mm) |
| BT-PDS-0745 | 7F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PDS-1445 | 14F | .038 inch (0.97mm) |
| BT-PDS-0750 | 7F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PDS-1450 | 14F | .038 inch (0.97mm) |
| BT-PDS-0820 | 8F | .038 inch (0.97mm) | 19 cm (XX=20) | BT-PDS-1620 | 16F | .038 inch (0.97mm) |
| BT-PDS-0825 | 8F | .038 inch (0.97mm) | 24 cm (XX=25) | BT-PDS-1625 | 16F | .038 inch (0.97mm) |
| BT-PDS-0830 | 8F | .038 inch (0.97mm) | 29 cm (XX=30) | BT-PDS-1630 | 16F | .038 inch (0.97mm) |
| BT-PDS-0835 | 8F | .038 inch (0.97mm) | 34 cm (XX=35) | BT-PDS-1635 | 16F | .038 inch (0.97mm) |
| BT-PDS-0840 | 8F | .038 inch (0.97mm) | 39 cm (XX=40) | BT-PDS-1640 | 16F | .038 inch (0.97mm) |
| BT-PDS-0845 | 8F | .038 inch (0.97mm) | 44 cm (XX=45) | BT-PDS-1645 | 16F | .038 inch (0.97mm) |
| BT-PDS-0850 | 8F | .038 inch (0.97mm) | 49 cm (XX=50) | BT-PDS-1650 | 16F | .038 inch (0.97mm) |
| BT-PDS-0920 | 9F | .038 inch (0.97mm) | 19 cm (XX=20) | |||
| BT-PDS-0925 | 9F | .038 inch (0.97mm) | 24 cm (XX=25) | |||
| BT-PDS-0930 | 9F | .038 inch (0.97mm) | 29 cm (XX=30) | |||
| BT-PDS-0935 | 9F | .038 inch (0.97mm) | 34 cm (XX=35) | |||
| BT-PDS-0940 | 9F | .038 inch (0.97mm) | 39 cm (XX=40) | |||
| BT-PDS-0945 | 9F | .038 inch (0.97mm) | 44 cm (XX=45) | |||
| BT-PDS-0950 | 9F | .038 inch (0.97mm) | 49 cm (XX=50) |
註: 符合國際CE認證
