硬化注射療法豬尾巴型式引流導管組(BT-PD1-series-(ETL);BT-PD1-series-W(ETL))
- 導管可用於乙醇環境，但2小時為限。
- 此型導管是採用直接穿刺技術(BT-PD1-series(ETL))或Seldinger穿刺技術 (BT-PDS-series(ETL))的方式置放於體內引流處。
- 帶線導管附有容易使用且可靠的安全線扣裝置,可以讓導管穩固於引流處。
- 導管表面之親水塗層降低導管穿刺的摩擦力，使導管易於導入。
- 導管前端大的橢圓引流孔,可增加引流能力。
- 引流導管組採用無菌消毒袋包裝, 限一次性使用。
- 帶線或不帶線引流導管
- 導直管
- 穿刺針(內針+外針)

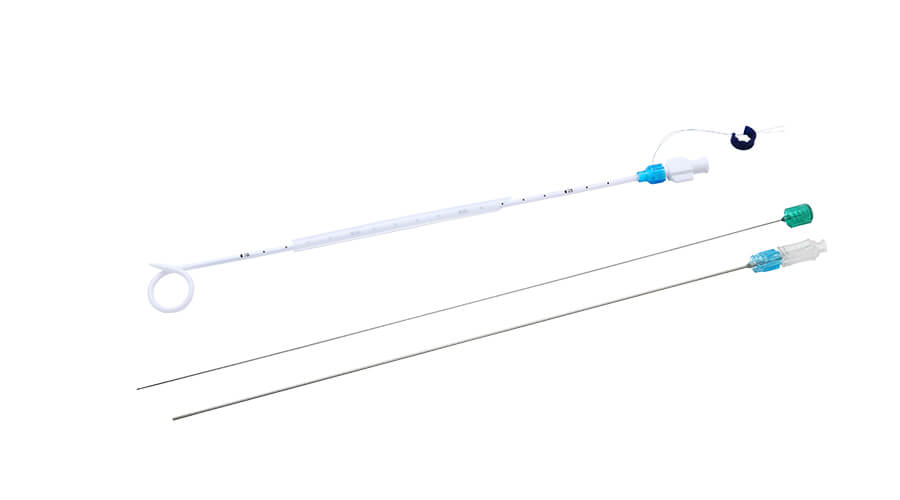

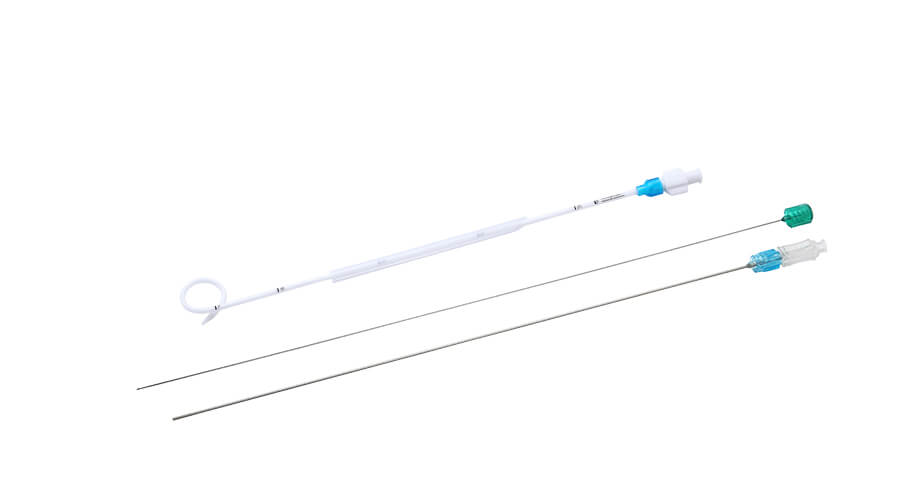

每一套組包含:

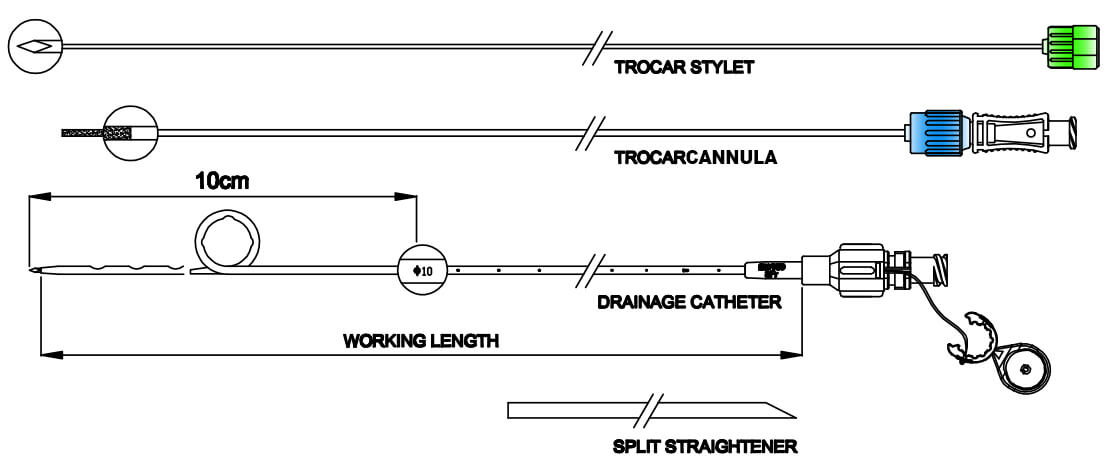

產品線稿
規格
帶線
| 型號 | 尺寸 | 容許最大導絲線徑 | 工作長度 | 型號 | 尺寸 | 容許最大導絲線徑 |
|---|---|---|---|---|---|---|
| BT-PD1-0620-W(ETL) | 6F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PD1-0920-W(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0625-W(ETL) | 6F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PD1-0925-W(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0630-W(ETL) | 6F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PD1-0930-W(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0635-W(ETL) | 6F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PD1-0935-W(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0640-W(ETL) | 6F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PD1-0940-W(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0645-W(ETL) | 6F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PD1-0945-W(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0650-W(ETL) | 6F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PD1-0950-W(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0720-W(ETL) | 7F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PD1-1020-W(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0725-W(ETL) | 7F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PD1-1025-W(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0730-W(ETL) | 7F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PD1-1030-W(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0735-W(ETL) | 7F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PD1-1035-W(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0740-W(ETL) | 7F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PD1-1040-W(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0745-W(ETL) | 7F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PD1-1045-W(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0750-W(ETL) | 7F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PD1-1050-W(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0820-W(ETL) | 8F | .038 inch (0.97mm) | 19 cm (XX=20) | |||
| BT-PD1-0825-W(ETL) | 8F | .038 inch (0.97mm) | 24 cm (XX=25) | |||
| BT-PD1-0830-W(ETL) | 8F | .038 inch (0.97mm) | 29 cm (XX=30) | |||
| BT-PD1-0835-W(ETL) | 8F | .038 inch (0.97mm) | 34 cm (XX=35) | |||
| BT-PD1-0840-W(ETL) | 8F | .038 inch (0.97mm) | 39 cm (XX=40) | |||
| BT-PD1-0845-W(ETL) | 8F | .038 inch (0.97mm) | 44 cm (XX=45) | |||
| BT-PD1-0850-W(ETL) | 8F | .038 inch (0.97mm) | 49 cm (XX=50) |
註: 符合國際CE認證
不帶線
| 型號 | 尺寸 | 容許最大導絲線徑 | 工作長度 | 型號 | 尺寸 | 容許最大導絲線徑 |
|---|---|---|---|---|---|---|
| BT-PD1-0520(ETL) | 5F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PD1-0820(ETL) | 8F | .038 inch (0.97mm) |
| BT-PD1-0525(ETL) | 5F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PD1-0825(ETL) | 8F | .038 inch (0.97mm) |
| BT-PD1-0530(ETL) | 5F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PD1-0830(ETL) | 8F | .038 inch (0.97mm) |
| BT-PD1-0535(ETL) | 5F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PD1-0835(ETL) | 8F | .038 inch (0.97mm) |
| BT-PD1-0540(ETL) | 5F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PD1-0840(ETL) | 8F | .038 inch (0.97mm) |
| BT-PD1-0545(ETL) | 5F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PD1-0845(ETL) | 8F | .038 inch (0.97mm) |
| BT-PD1-0550(ETL) | 5F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PD1-0850(ETL) | 8F | .038 inch (0.97mm) |
| BT-PD1-0620(ETL) | 6F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PD1-0920(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0625(ETL) | 6F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PD1-0925(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0630(ETL) | 6F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PD1-0930(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0635(ETL) | 6F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PD1-0935(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0640(ETL) | 6F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PD1-0940(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0645(ETL) | 6F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PD1-0945(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0650(ETL) | 6F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PD1-0950(ETL) | 9F | .038 inch (0.97mm) |
| BT-PD1-0720(ETL) | 7F | .035 inch (0.89mm) | 19 cm (XX=20) | BT-PD1-1020(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0725(ETL) | 7F | .035 inch (0.89mm) | 24 cm (XX=25) | BT-PD1-1025(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0730(ETL) | 7F | .035 inch (0.89mm) | 29 cm (XX=30) | BT-PD1-1030(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0735(ETL) | 7F | .035 inch (0.89mm) | 34 cm (XX=35) | BT-PD1-1035(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0740(ETL) | 7F | .035 inch (0.89mm) | 39 cm (XX=40) | BT-PD1-1040(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0745(ETL) | 7F | .035 inch (0.89mm) | 44 cm (XX=45) | BT-PD1-1045(ETL) | 10F | .038 inch (0.97mm) |
| BT-PD1-0750(ETL) | 7F | .035 inch (0.89mm) | 49 cm (XX=50) | BT-PD1-1050(ETL) | 10F | .038 inch (0.97mm) |
註: 符合國際CE認證
