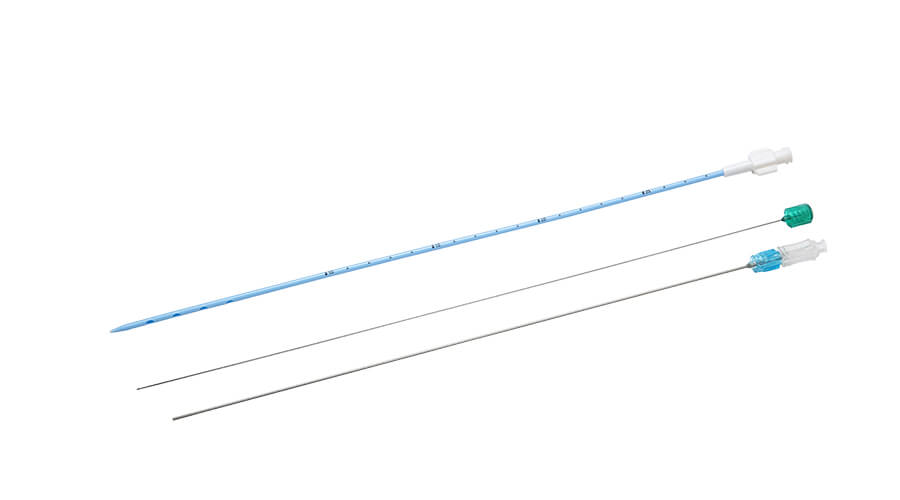

直型引流導管組(BT-PD0-series)

BT-PD0-series
直型引流導管組(BT-PD0-series)



  • 可使用於膿瘍及其它用途的引流。
  • 可使用於早期經皮腎造口術，膿瘍及其它用途的引流。
  • 此型導管是採用直接穿刺技術(BT-PD0-series)的方式置放於體內引流處。
  • 導管表面之親水塗層降低導管穿刺的摩擦力，使導管易於導入。
  • 導管前端大的橢圓引流孔,可增加引流能力。
  • 引流導管組採用無菌消毒袋包裝, 限一次性使用。

    • 每一套組包含:

    • 帶線或不帶線引流導管
    • 穿刺針(內針+外針)

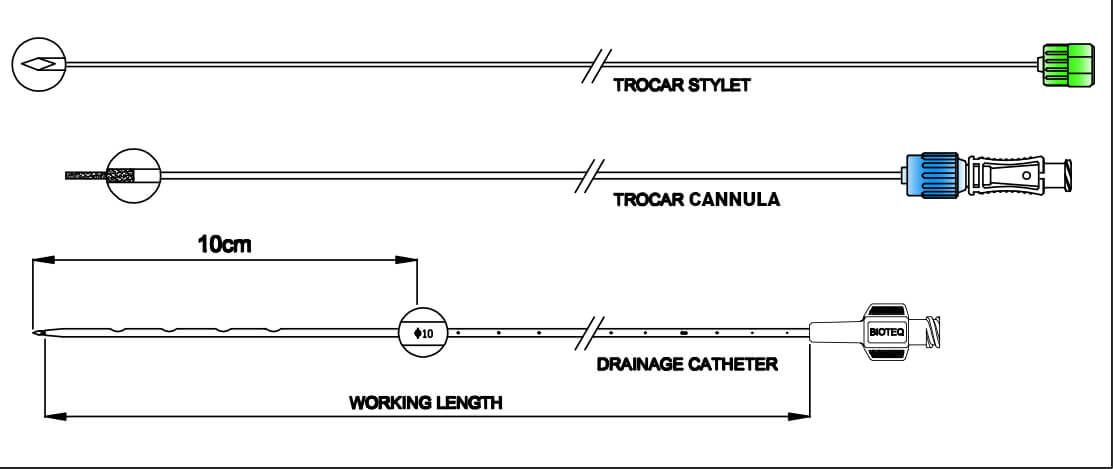

產品線稿
規格

不帶線

型號 尺寸 容許最大導絲線徑 工作長度 型號 尺寸 容許最大導絲線徑
BT-PD0-0520 5F .035 inch (0.89mm) 19 cm (XX=20) BT-PD0-1020 10F .038 inch (0.97mm)
BT-PD0-0525 5F .035 inch (0.89mm) 24 cm (XX=25) BT-PD0-1025 10F .038 inch (0.97mm)
BT-PD0-0530 5F .035 inch (0.89mm) 29 cm (XX=30) BT-PD0-1030 10F .038 inch (0.97mm)
BT-PD0-0535 5F .035 inch (0.89mm) 34 cm (XX=35) BT-PD0-1035 10F .038 inch (0.97mm)
BT-PD0-0540 5F .035 inch (0.89mm) 39 cm (XX=40) BT-PD0-1040 10F .038 inch (0.97mm)
BT-PD0-05450 5F .035 inch (0.89mm) 44 cm (XX=45) BT-PD0-1045 10F .038 inch (0.97mm)
BT-PD0-0550 5F .035 inch (0.89mm) 49 cm (XX=50) BT-PD0-1050 10F .038 inch (0.97mm)
BT-PD0-0620 6F .035 inch (0.89mm) 19 cm (XX=20) BT-PD0-1220 12F .038 inch (0.97mm)
BT-PD0-0625 6F .035 inch (0.89mm) 24 cm (XX=25) BT-PD0-1225 12F .038 inch (0.97mm)
BT-PD0-0630 6F .035 inch (0.89mm) 29 cm (XX=30) BT-PD0-1230 12F .038 inch (0.97mm)
BT-PD0-0635 6F .035 inch (0.89mm) 34 cm (XX=35) BT-PD0-1235 12F .038 inch (0.97mm)
BT-PD0-0640 6F .035 inch (0.89mm) 39 cm (XX=40) BT-PD0-1240 12F .038 inch (0.97mm)
BT-PD0-0645 6F .035 inch (0.89mm) 44 cm (XX=45) BT-PD0-1245 12F .038 inch (0.97mm)
BT-PD0-0650 6F .035 inch (0.89mm) 49 cm (XX=50) BT-PD0-1250 12F .038 inch (0.97mm)
BT-PD0-0720 7F .035 inch (0.89mm) 19 cm (XX=20) BT-PD0-1420 14F .038 inch (0.97mm)
BT-PD0-0725 7F .035 inch (0.89mm) 24 cm (XX=25) BT-PD0-1425 14F .038 inch (0.97mm)
BT-PD0-0730 7F .035 inch (0.89mm) 29 cm (XX=30) BT-PD0-1430 14F .038 inch (0.97mm)
BT-PD0-0735 7F .035 inch (0.89mm) 34 cm (XX=35) BT-PD0-1435 14F .038 inch (0.97mm)
BT-PD0-0740 7F .035 inch (0.89mm) 39 cm (XX=40) BT-PD0-1440 14F .038 inch (0.97mm)
BT-PD0-0745 7F .035 inch (0.89mm) 44 cm (XX=45) BT-PD0-1445 14F .038 inch (0.97mm)
BT-PD0-0750 7F .035 inch (0.89mm) 49 cm (XX=50) BT-PD0-1450 14F .038 inch (0.97mm)
BT-PD0-0820 8F .038 inch (0.97mm) 19 cm (XX=20) BT-PD0-1620 16F .038 inch (0.97mm)
BT-PD0-0825 8F .038 inch (0.97mm) 24 cm (XX=25) BT-PD0-1625 16F .038 inch (0.97mm)
BT-PD0-0830 8F .038 inch (0.97mm) 29 cm (XX=30) BT-PD0-1630 16F .038 inch (0.97mm)
BT-PD0-0835 8F .038 inch (0.97mm) 34 cm (XX=35) BT-PD0-1635 16F .038 inch (0.97mm)
BT-PD0-0840 8F .038 inch (0.97mm) 39 cm (XX=40) BT-PD0-1640 16F .038 inch (0.97mm)
BT-PD0-0845 8F .038 inch (0.97mm) 44 cm (XX=45) BT-PD0-1645 16F .038 inch (0.97mm)
BT-PD0-0850 8F .038 inch (0.97mm) 49 cm (XX=50) BT-PD0-1650 16F .038 inch (0.97mm)
BT-PD0-0920 9F .038 inch (0.97mm) 19 cm (XX=20)
BT-PD0-0925 9F .038 inch (0.97mm) 24 cm (XX=25)
BT-PD0-0930 9F .038 inch (0.97mm) 29 cm (XX=30)
BT-PD0-0935 9F .038 inch (0.97mm) 34 cm (XX=35)
BT-PD0-0940 9F .038 inch (0.97mm) 39 cm (XX=40)
BT-PD0-0945 9F .038 inch (0.97mm) 44 cm (XX=45)
BT-PD0-0950 9F .038 inch (0.97mm) 49 cm (XX=50)

註: 符合國際CE認證

不帶線

型號 尺寸 容許最大導絲線徑 工作長度 型號 尺寸 容許最大導絲線徑
BT-PD2-0520 5F .035 inch (0.89mm) 19 cm (XX=20) BT-PD2-1020 10F .038 inch (0.97mm)
BT-PD2-0525 5F .035 inch (0.89mm) 24 cm (XX=25) BT-PD2-1025 10F .038 inch (0.97mm)
BT-PD2-0530 5F .035 inch (0.89mm) 29 cm (XX=30) BT-PD2-1030 10F .038 inch (0.97mm)
BT-PD2-0535 5F .035 inch (0.89mm) 34 cm (XX=35) BT-PD2-1035 10F .038 inch (0.97mm)
BT-PD2-0540 5F .035 inch (0.89mm) 39 cm (XX=40) BT-PD2-1040 10F .038 inch (0.97mm)
BT-PD2-0545 5F .035 inch (0.89mm) 44 cm (XX=45) BT-PD2-1045 10F .038 inch (0.97mm)
BT-PD2-0550 5F .035 inch (0.89mm) 49 cm (XX=50) BT-PD2-1050 10F .038 inch (0.97mm)
BT-PD2-0620 6F .035 inch (0.89mm) 19 cm (XX=20) BT-PD2-1220 12F .038 inch (0.97mm)
BT-PD2-0625 6F .035 inch (0.89mm) 24 cm (XX=25) BT-PD2-1225 12F .038 inch (0.97mm)
BT-PD2-0630 6F .035 inch (0.89mm) 29 cm (XX=30) BT-PD2-1230 12F .038 inch (0.97mm)
BT-PD2-0635 6F .035 inch (0.89mm) 34 cm (XX=35) BT-PD2-1235 12F .038 inch (0.97mm)
BT-PD2-0640 6F .035 inch (0.89mm) 39 cm (XX=40) BT-PD2-1240 12F .038 inch (0.97mm)
BT-PD2-0645 6F .035 inch (0.89mm) 44 cm (XX=45) BT-PD2-1245 12F .038 inch (0.97mm)
BT-PD2-0650 6F .035 inch (0.89mm) 49 cm (XX=50) BT-PD2-1250 12F .038 inch (0.97mm)
BT-PD2-0720 7F .035 inch (0.89mm) 19 cm (XX=20) BT-PD2-1420 14F .038 inch (0.97mm)
BT-PD2-0725 7F .035 inch (0.89mm) 24 cm (XX=25) BT-PD2-1425 14F .038 inch (0.97mm)
BT-PD2-0730 7F .035 inch (0.89mm) 29 cm (XX=30) BT-PD2-1430 14F .038 inch (0.97mm)
BT-PD2-0735 7F .035 inch (0.89mm) 34 cm (XX=35) BT-PD2-1435 14F .038 inch (0.97mm)
BT-PD2-0740 7F .035 inch (0.89mm) 39 cm (XX=40) BT-PD2-1440 14F .038 inch (0.97mm)
BT-PD2-0745 7F .035 inch (0.89mm) 44 cm (XX=45) BT-PD2-1445 14F .038 inch (0.97mm)
BT-PD2-0750 7F .035 inch (0.89mm) 49 cm (XX=50) BT-PD2-1450 14F .038 inch (0.97mm)
BT-PD2-0820 8F .038 inch (0.97mm) 19 cm (XX=20) BT-PD2-1620 16F .038 inch (0.97mm)
BT-PD2-0825 8F .038 inch (0.97mm) 24 cm (XX=25) BT-PD2-1625 16F .038 inch (0.97mm)
BT-PD2-0830 8F .038 inch (0.97mm) 29 cm (XX=30) BT-PD2-1630 16F .038 inch (0.97mm)
BT-PD2-0835 8F .038 inch (0.97mm) 34 cm (XX=35) BT-PD2-1635 16F .038 inch (0.97mm)
BT-PD2-0840 8F .038 inch (0.97mm) 39 cm (XX=40) BT-PD2-1640 16F .038 inch (0.97mm)
BT-PD2-0845 8F .038 inch (0.97mm) 44 cm (XX=45) BT-PD2-1645 16F .038 inch (0.97mm)
BT-PD2-0850 8F .038 inch (0.97mm) 49 cm (XX=50) BT-PD2-1650 16F .038 inch (0.97mm)
BT-PD2-0920 9F .038 inch (0.97mm) 19 cm (XX=20)
BT-PD2-0925 9F .038 inch (0.97mm) 24 cm (XX=25)
BT-PD2-0930 9F .038 inch (0.97mm) 29 cm (XX=30)
BT-PD2-0935 9F .038 inch (0.97mm) 34 cm (XX=35)
BT-PD2-0940 9F .038 inch (0.97mm) 39 cm (XX=40)
BT-PD2-0945 9F .038 inch (0.97mm) 44 cm (XX=45)
BT-PD2-0950 9F .038 inch (0.97mm) 49 cm (XX=50)

註: 符合國際CE認證
