穿刺導入膽道引流導管套組附顯影金屬環-BT-PDS-BRB-NK2-T

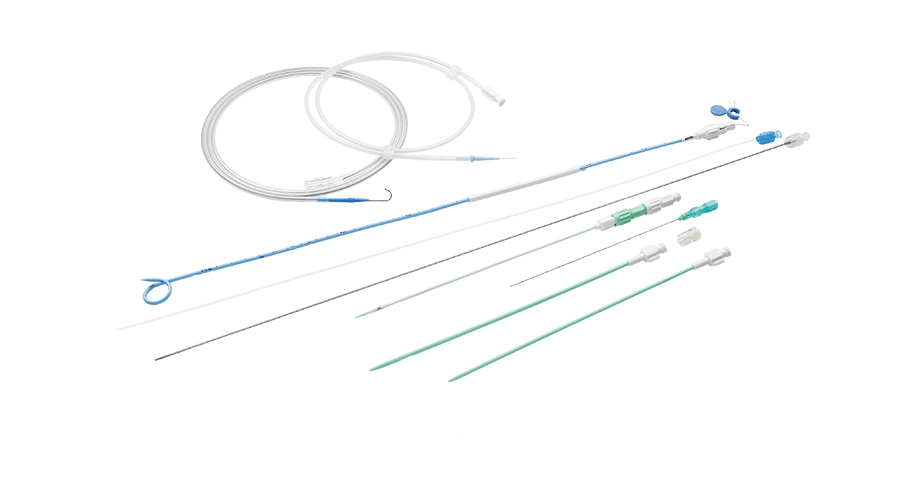

- 穿刺導入引流導管套組, 基本上包含: 附顯影金屬環膽道引流導管附導直管、硬套管、軟套管 (適合 7~16F 導管)、 6Fr同軸擴張管、 擴張管, 21G導引穿刺針, 0.018" 鎳鈦合金導絲(80cm)、.035"不銹鋼導絲(90cm) 。
- 用無菌消毒袋包裝, 限一次性使用。

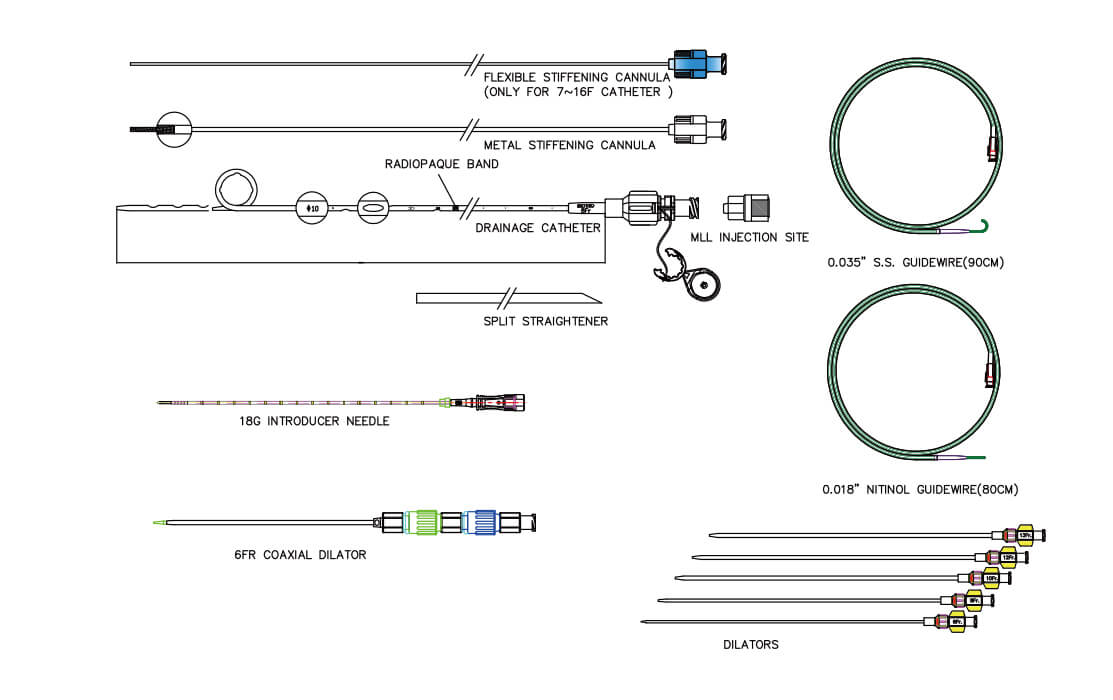

產品線稿
規格
帶線
| 型號 | 尺寸 | 包含擴張管 | 工作長度 | 型號 | 尺寸 | 包含擴張管 |
|---|---|---|---|---|---|---|
| BT-PDS-0620-W(B)-RB-NK2-T | 6F | 6F, 7F | 19 cm (XX=20) | BT-PDS-1220-W(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0625-W(B)-RB-NK2-T | 6F | 6F, 7F | 24 cm (XX=25) | BT-PDS-1225-W(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0630-W(B)-RB-NK2-T | 6F | 6F, 7F | 29 cm (XX=30) | BT-PDS-1230-W(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0635-W(B)-RB-NK2-T | 6F | 6F, 7F | 34 cm (XX=35) | BT-PDS-1235-W(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0640-W(B)-RB-NK2-T | 6F | 6F, 7F | 39 cm (XX=40) | BT-PDS-1240-W(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0645-W(B)-RB-NK2-T | 6F | 6F, 7F | 44 cm (XX=45) | BT-PDS-1245-W(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0650-W(B)-RB-NK2-T | 6F | 6F, 7F | 49 cm (XX=50) | BT-PDS-1250-W(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0820-W(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 19 cm (XX=20) | BT-PDS-1420-W(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0825-W(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 24 cm (XX=25) | BT-PDS-1425-W(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0830-W(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 29 cm (XX=30) | BT-PDS-1430-W(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0835-W(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 34 cm (XX=35) | BT-PDS-1435-W(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0840-W(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 39 cm (XX=40) | BT-PDS-1440-W(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0845-W(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 44 cm (XX=45) | BT-PDS-1445-W(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0850-W(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 49 cm (XX=50) | BT-PDS-1450-W(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-1020-W(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 19 cm (XX=20) | |||
| BT-PDS-1025-W(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 24 cm (XX=25) | |||
| BT-PDS-1030-W(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 29 cm (XX=30) | |||
| BT-PDS-1035-W(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 34 cm (XX=35) | |||
| BT-PDS-1040-W(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 39 cm (XX=40) | |||
| BT-PDS-1045-W(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 44 cm (XX=45) | |||
| BT-PDS-1050-W(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 49 cm (XX=50) |
註: 不符合國際CE認證
.
不帶線
| 型號 | 尺寸 | 包含擴張管 | 工作長度 | 型號 | 尺寸 | 包含擴張管 |
|---|---|---|---|---|---|---|
| BT-PDS-0620(B)-RB-NK2-T | 6F | 6F, 7F | 19 cm (XX=20) | BT-PDS-1220(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0625(B)-RB-NK2-T | 6F | 6F, 7F | 24 cm (XX=25) | BT-PDS-1225(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0630(B)-RB-NK2-T | 6F | 6F, 7F | 29 cm (XX=30) | BT-PDS-1230(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0635(B)-RB-NK2-T | 6F | 6F, 7F | 34 cm (XX=35) | BT-PDS-1235(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0640(B)-RB-NK2-T | 6F | 6F, 7F | 39 cm (XX=40) | BT-PDS-1240(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0645(B)-RB-NK2-T | 6F | 6F, 7F | 44 cm (XX=45) | BT-PDS-1245(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0650(B)-RB-NK2-T | 6F | 6F, 7F | 49 cm (XX=50) | BT-PDS-1250(B)-RB-NK2-T | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0820(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 19 cm (XX=20) | BT-PDS-1420(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0825(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 24 cm (XX=25) | BT-PDS-1425(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0830(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 29 cm (XX=30) | BT-PDS-1430(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0835(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 34 cm (XX=35) | BT-PDS-1435(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0840(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 39 cm (XX=40) | BT-PDS-1440(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0845(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 44 cm (XX=45) | BT-PDS-1445(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0850(B)-RB-NK2-T | 8F | 6F, 8F, 9F | 49 cm (XX=50) | BT-PDS-1450(B)-RB-NK2-T | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-1020(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 19 cm (XX=20) | |||
| BT-PDS-1025(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 24 cm (XX=25) | |||
| BT-PDS-1030(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 29 cm (XX=30) | |||
| BT-PDS-1035(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 34 cm (XX=35) | |||
| BT-PDS-1040(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 39 cm (XX=40) | |||
| BT-PDS-1045(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 44 cm (XX=45) | |||
| BT-PDS-1050(B)-RB-NK2-T | 10F | 6F, 8F, 10F, 11F | 49 cm (XX=50) |
註: 不符合國際CE認證
