穿刺導入豬尾巴引流導管套組-BT-PDS-NK1-T

BT-PDS-NK1-T
穿刺導入豬尾巴引流導管套組-BT-PDS-NK1-T

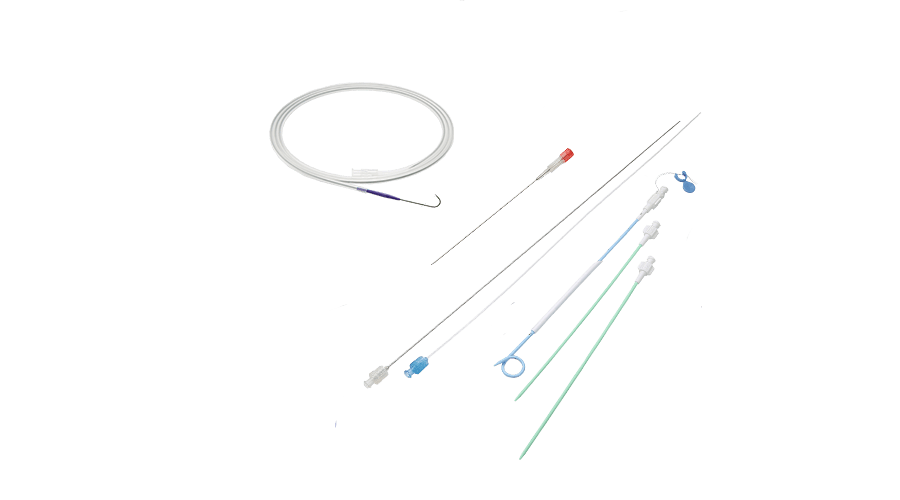

  • 穿刺導入引流導管套組, 基本上包含: 引流導管附導直管、硬套管、軟套管 (適合 7~16F 導管)、 擴張管, 18G導引穿刺針, 0.035"不銹鋼導絲(90cm) 。
  • 用無菌消毒袋包裝, 限一次性使用。

    •

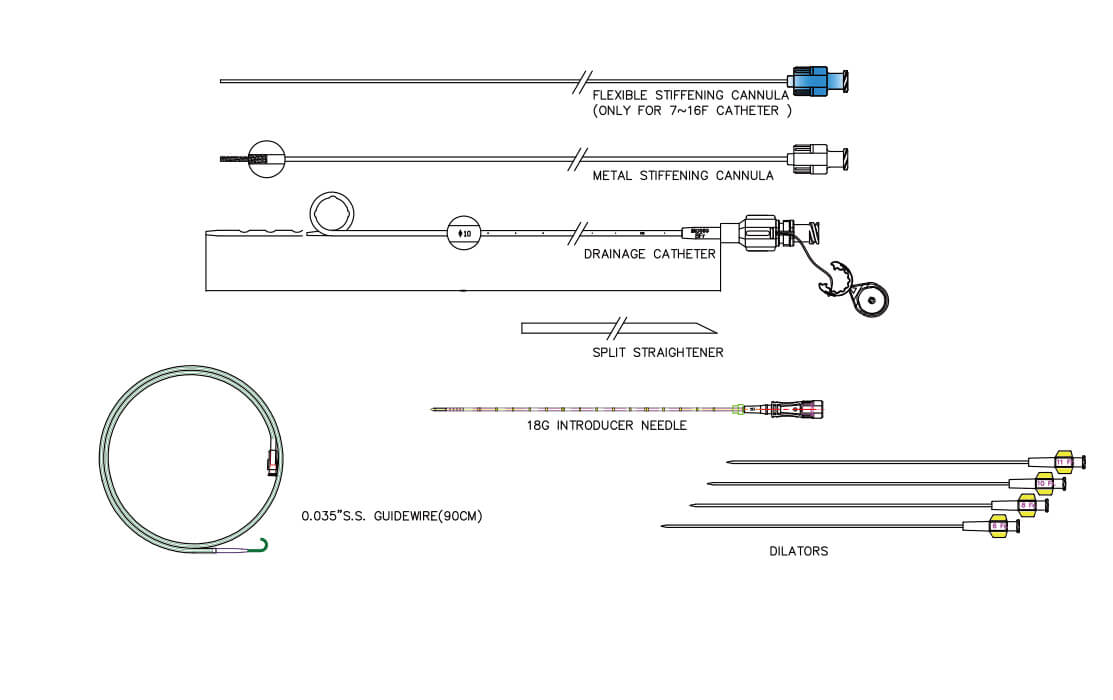

產品線稿
規格

帶線

型號 尺寸 包含擴張管 工作長度 型號 尺寸 包含擴張管
BT-PDS-0620-W-NK1-T 6F 6F, 7F 19 cm (XX=20) BT-PDS-1020-W-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0625-W-NK1-T 6F 6F, 7F 24 cm (XX=25)  BT-PDS-1025-W-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0630-W-NK1-T 6F 6F, 7F 29 cm (XX=30)  BT-PDS-1030-W-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0635-W-NK1-T 6F 6F, 7F 34 cm (XX=35)  BT-PDS-1035-W-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0640-W-NK1-T 6F 6F, 7F 39 cm (XX=40)  BT-PDS-1040-W-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0645-W-NK1-T 6F 6F, 7F 44 cm (XX=45)  BT-PDS-1045-W-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0650-W-NK1-T 6F 6F, 7F 49 cm (XX=50)  BT-PDS-1050-W-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0720-W-NK1-T 7F 6F, 7F, 8F 19 cm (XX=20) BT-PDS-1220-W-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0725-W-NK1-T 7F 6F, 7F, 8F 24 cm (XX=25) BT-PDS-1225-W-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0730-W-NK1-T 7F 6F, 7F, 8F 29 cm (XX=30) BT-PDS-1230-W-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0735-W-NK1-T 7F 6F, 7F, 8F 34 cm (XX=35) BT-PDS-1235-W-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0740-W-NK1-T 7F 6F, 7F, 8F 39 cm (XX=40) BT-PDS-1240-W-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0745-W-NK1-T 7F 6F, 7F, 8F 44 cm (XX=45) BT-PDS-1245-W-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0750-W-NK1-T 7F 6F, 8F, 9F 49 cm (XX=50) BT-PDS-1250-W-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0820-W-NK1-T 8F 6F, 8F, 9F 19 cm (XX=20) BT-PDS-1420-W-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0825-W-NK1-T 8F 6F, 8F, 9F 24 cm (XX=25) BT-PDS-1425-W-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0830-W-NK1-T 8F 6F, 8F, 9F 29 cm (XX=30) BT-PDS-1430-W-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0835-W-NK1-T 8F 6F, 8F, 9F 34 cm (XX=35) BT-PDS-1435-W-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0840-W-NK1-T 8F 6F, 8F, 9F 39 cm (XX=40) BT-PDS-1440-W-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0845-W-NK1-T 8F 6F, 8F, 9F 44 cm (XX=45) BT-PDS-1445-W-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0850-W-NK1-T 8F 6F, 8F, 9F 49 cm (XX=50) BT-PDS-1450-W-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0920-W-NK1-T 9F 6F, 8F, 10F 19 cm (XX=20) BT-PDS-1620-W-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0925-W-NK1-T 9F 6F, 8F, 10F 24 cm (XX=25) BT-PDS-1625-W-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0930-W-NK1-T 9F 6F, 8F, 10F 29 cm (XX=30) BT-PDS-1630-W-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0935-W-NK1-T 9F 6F, 8F, 10F 34 cm (XX=35) BT-PDS-1635-W-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0940-W-NK1-T 9F 6F, 8F, 10F 39 cm (XX=40) BT-PDS-1640-W-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0945-W-NK1-T 9F 6F, 8F, 10F 44 cm (XX=45) BT-PDS-1645-W-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0950-W-NK1-T 9F 6F, 8F, 10F 49 cm (XX=50) BT-PDS-1650-W-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F

註: 不符合國際CE認證

.

不帶線

型號 尺寸 包含擴張管 工作長度 型號 尺寸 包含擴張管
BT-PDS-0520-NK1-T 5F 6F 19 cm (XX=20)   BT-PDS-1020-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0525-NK1-T 5F 6F 24 cm (XX=25)   BT-PDS-1025-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0530-NK1-T 5F 6F 29 cm (XX=30)   BT-PDS-1030-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0535-NK1-T 5F 6F 34 cm (XX=35)   BT-PDS-1035-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0540-NK1-T 5F 6F 39 cm (XX=40)   BT-PDS-1040-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0545-NK1-T 5F 6F 44 cm (XX=45)   BT-PDS-1045-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0550-NK1-T 5F 6F 49 cm (XX=50)   BT-PDS-1050-NK1-T 10F 6F, 8F, 10F, 11F
BT-PDS-0620-NK1-T 6F 6F, 7F 19 cm (XX=20)   BT-PDS-1220-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0625-NK1-T 6F 6F, 7F 24 cm (XX=25)   BT-PDS-1225-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0630-NK1-T 6F 6F, 7F 29 cm (XX=30)   BT-PDS-1230-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0635-NK1-T 6F 6F, 7F 34 cm (XX=35)   BT-PDS-1235-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0640-NK1-T 6F 6F, 7F 39 cm (XX=40)   BT-PDS-1240-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0645-NK1-T 6F 6F, 7F 44 cm (XX=45)   BT-PDS-1245-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0650-NK1-T 6F 6F, 7F 49 cm (XX=50)   BT-PDS-1250-NK1-T 12F 6F, 8F, 10F, 12F, 13F
BT-PDS-0720-NK1-T 7F 6F, 7F, 8F 19 cm (XX=20)   BT-PDS-1420-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0725-NK1-T 7F 6F, 7F, 8F 24 cm (XX=25)   BT-PDS-1425-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0730-NK1-T 7F 6F, 7F, 8F 29 cm (XX=30)   BT-PDS-1430-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0735-NK1-T 7F 6F, 7F, 8F 34 cm (XX=35)  BT-PDS-1435-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0740-NK1-T 7F 6F, 7F, 8F 39 cm (XX=40)  BT-PDS-1440-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0745-NK1-T 7F 6F, 7F, 8F 44 cm (XX=45)  BT-PDS-1445-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0750-NK1-T 7F 6F, 8F, 9F 49 cm (XX=50)  BT-PDS-1450-NK1-T 14F 6F, 8F, 10F, 12F, 14F, 15F
BT-PDS-0820-NK1-T 8F 6F, 8F, 9F 19 cm (XX=20)  BT-PDS-1620-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0825-NK1-T 8F 6F, 8F, 9F 24 cm (XX=25)  BT-PDS-1625-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0830-NK1-T 8F 6F, 8F, 9F 29 cm (XX=30)  BT-PDS-1630-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0835-NK1-T 8F 6F, 8F, 9F 34 cm (XX=35)  BT-PDS-1635-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0840-NK1-T 8F 6F, 8F, 9F 39 cm (XX=40)  BT-PDS-1640-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0845-NK1-T 8F 6F, 8F, 9F 44 cm (XX=45)  BT-PDS-1645-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0850-NK1-T 8F 6F, 8F, 9F 49 cm (XX=50)  BT-PDS-1650-NK1-T 16F 6F, 8F, 10F, 12F, 14F, 16F
BT-PDS-0920-NK1-T 9F 6F, 8F, 10F 19 cm (XX=20)
BT-PDS-0925-NK1-T 9F 6F, 8F, 10F 24 cm (XX=25)
BT-PDS-0930-NK1-T 9F 6F, 8F, 10F 29 cm (XX=30)
BT-PDS-0935-NK1-T 9F 6F, 8F, 10F 34 cm (XX=35)
BT-PDS-0940-NK1-T 9F 6F, 8F, 10F 39 cm (XX=40)
BT-PDS-0945-NK1-T 9F 6F, 8F, 10F 44 cm (XX=45)
BT-PDS-0950-NK1-T 9F 6F, 8F, 10F 49 cm (XX=50)

註: 不符合國際CE認證
