穿刺導入豬尾巴引流導管套組-BT-PDS-NK2-T(+CT/DB/SC/ST/CS/CN)

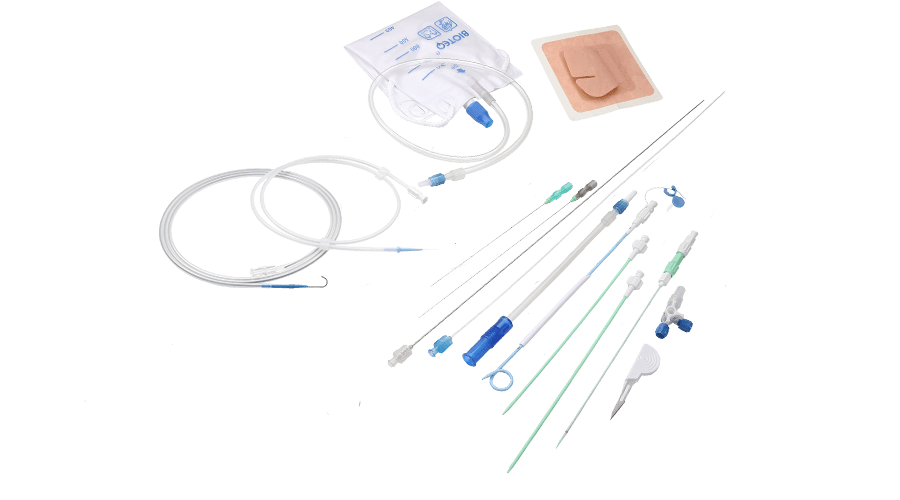

- 穿刺導入引流導管套組, 基本上包含:豬尾巴引流導管附導直管、硬套管、軟套管 (適合 7~16F 導管)、 6Fr同軸擴張管、擴張管、21G導引穿刺針、 0.018" 鎳鈦合金導絲(80cm)、 0.035"不銹鋼導絲(90cm) 。
- BT-PDS-…………..NK2-T(+CT/DB/SC/ST/CS/CN) 引流導管套組以盤包裝。
- 擇性配件 (+連接管/引流袋/手術刀/旋轉閥/導管固定貼片/顯影針)強化NK2套組的使用，支援各式引流手術。
- 採用無菌消毒袋包裝, 限一次性使用。
產品線稿
規格
帶線
| 型號 | 尺寸 | 包含擴張管 | 工作長度 | 型號 | 尺寸 | 包含擴張管 |
|---|---|---|---|---|---|---|
| BT-PDS-0620-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 19 cm (XX=20) | BT-PDS-1020-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0625-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 24 cm (XX=25) | BT-PDS-1025-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0630-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 29 cm (XX=30) | BT-PDS-1030-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0635-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 34 cm (XX=35) | BT-PDS-1035-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0640-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 39 cm (XX=40) | BT-PDS-1040-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0645-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 44 cm (XX=45) | BT-PDS-1045-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0650-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 49 cm (XX=50) | BT-PDS-1050-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0720-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 19 cm (XX=20) | BT-PDS-1220-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0725-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 24 cm (XX=25) | BT-PDS-1225-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0730-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 29 cm (XX=30) | BT-PDS-1230-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0735-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 34 cm (XX=35) | BT-PDS-1235-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0740-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 39 cm (XX=40) | BT-PDS-1240-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0745-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 44 cm (XX=45) | BT-PDS-1245-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0750-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 8F, 9F | 49 cm (XX=50) | BT-PDS-1250-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0820-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 19 cm (XX=20) | BT-PDS-1420-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0825-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 24 cm (XX=25) | BT-PDS-1425-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0830-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 29 cm (XX=30) | BT-PDS-1430-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0835-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 34 cm (XX=35) | BT-PDS-1435-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0840-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 39 cm (XX=40) | BT-PDS-1440-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0845-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 44 cm (XX=45) | BT-PDS-1445-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0850-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 49 cm (XX=50) | BT-PDS-1450-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0920-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | 19 cm (XX=20) | BT-PDS-1620-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0925-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | 24 cm (XX=25) | BT-PDS-1625-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0930-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | 29 cm (XX=30) | BT-PDS-1630-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0935-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | 34 cm (XX=35) | BT-PDS-1635-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0940-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | 39 cm (XX=40) | BT-PDS-1640-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0945-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | 44 cm (XX=45) | BT-PDS-1645-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0950-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | 49 cm (XX=50) | BT-PDS-1650-W-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
註: 不符合國際CE認證
.
不帶線
| 型號 | 尺寸 | 包含擴張管 | 工作長度 | 型號 | 尺寸 | 包含擴張管 |
|---|---|---|---|---|---|---|
| BT-PDS-0520-NK2-T(+CT/DB/SC/ST/CS/CN) | 5F | 6F | 19 cm (XX=20) | BT-PDS-1020-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0525-NK2-T(+CT/DB/SC/ST/CS/CN) | 5F | 6F | 24 cm (XX=25) | BT-PDS-1025-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0530-NK2-T(+CT/DB/SC/ST/CS/CN) | 5F | 6F | 29 cm (XX=30) | BT-PDS-1030-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0535-NK2-T(+CT/DB/SC/ST/CS/CN) | 5F | 6F | 34 cm (XX=35) | BT-PDS-1035-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0540-NK2-T(+CT/DB/SC/ST/CS/CN) | 5F | 6F | 39 cm (XX=40) | BT-PDS-1040-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0545-NK2-T(+CT/DB/SC/ST/CS/CN) | 5F | 6F | 44 cm (XX=45) | BT-PDS-1045-NK2-T(+CT/DB/SC/ST/CS/CN) | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0550-NK2-T(+CT/DB/SC/ST/CS/CN) | 5F | 6F | 49 cm (XX=50) | BT-PDS-1050-NK2-T(+CT/DB/SC/ST/CS/CN | 10F | 6F, 8F, 10F, 11F |
| BT-PDS-0620-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 19 cm (XX=20) | BT-PDS-1220-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0625-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 24 cm (XX=25) | BT-PDS-1225-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0630-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 29 cm (XX=30) | BT-PDS-1230-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0635-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 34 cm (XX=35) | BT-PDS-1235-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0640-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 39 cm (XX=40) | BT-PDS-1240-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0645-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 44 cm (XX=45) | BT-PDS-1245-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0650-NK2-T(+CT/DB/SC/ST/CS/CN) | 6F | 6F, 7F | 49 cm (XX=50) | BT-PDS-1250-NK2-T(+CT/DB/SC/ST/CS/CN) | 12F | 6F, 8F, 10F, 12F, 13F |
| BT-PDS-0720-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 19 cm (XX=20) | BT-PDS-1420-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0725-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 24 cm (XX=25) | BT-PDS-1425-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0730-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 29 cm (XX=30) | BT-PDS-1430-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0735-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 34 cm (XX=35) | BT-PDS-1435-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0740-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 39 cm (XX=40) | BT-PDS-1440-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0745-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 44 cm (XX=45) | BT-PDS-1445-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0750-NK2-T(+CT/DB/SC/ST/CS/CN) | 7F | 6F, 7F, 8F | 49 cm (XX=50) | BT-PDS-1450-NK2-T(+CT/DB/SC/ST/CS/CN) | 14F | 6F, 8F, 10F, 12F, 14F, 15F |
| BT-PDS-0820-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 19 cm (XX=20) | BT-PDS-1620-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0825-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 24 cm (XX=25) | BT-PDS-1625-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0830-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 29 cm (XX=30) | BT-PDS-1630-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0835-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 34 cm (XX=35) | BT-PDS-1635-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0840-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 39 cm (XX=40) | BT-PDS-1640-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0845-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 44 cm (XX=45) | BT-PDS-1645-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0850-NK2-T(+CT/DB/SC/ST/CS/CN) | 8F | 6F, 8F, 9F | 49 cm (XX=50) | BT-PDS-1650-NK2-T(+CT/DB/SC/ST/CS/CN) | 16F | 6F, 8F, 10F, 12F, 14F, 16F |
| BT-PDS-0920-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | ||||
| BT-PDS-0925-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | ||||
| BT-PDS-0930-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | ||||
| BT-PDS-0935-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | ||||
| BT-PDS-0940-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | ||||
| BT-PDS-0945-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F | ||||
| BT-PDS-0950-NK2-T(+CT/DB/SC/ST/CS/CN) | 9F | 6F, 8F, 10F |
註: 不符合國際CE認證
