輸液套

BI-136;BI-137

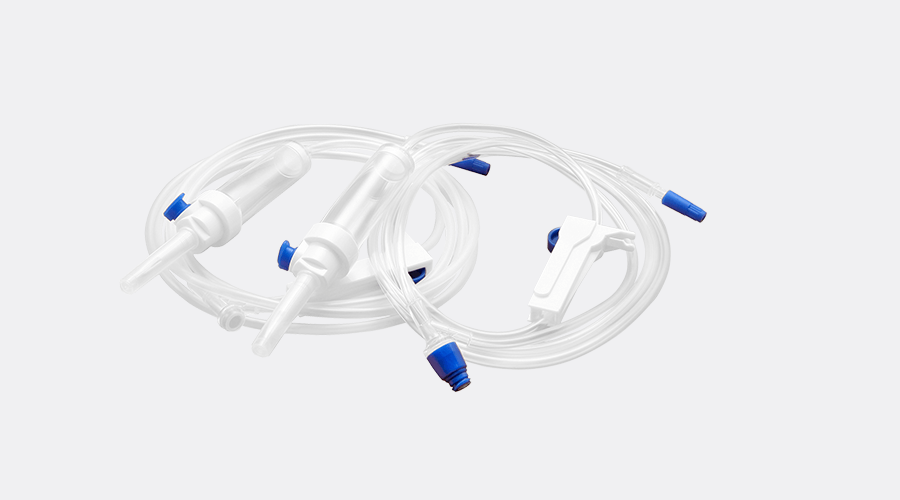

輸液套
  • 供醫療性溶液或液體進入病患靜脈之通路。
  • 有各式零件組合, 液量控制器, Y接頭, ABS穿刺頭組含通氣孔..等。
  • PVC滴口室有普通點滴套管或精密輸液管, 含通氣孔,濾網或不含通氣孔,濾網。
  • Luer Lock（旋緊式）及Luer Slip（套插式）。
  • 1c.c.=60滴 或1c.c.=20滴。
  • 採用無菌消毒袋包裝, 限一次性使用。
規格

BI-136 Series for Hemodialysis Centers

Order Number Description Product Drawing

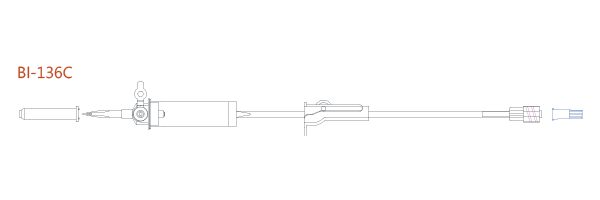

BI-136C

Infusion set, vented, universal spike:20 drops/ml, roller clamp, male luer lock,
soft PVC, approximate set length:140cm, latex free.

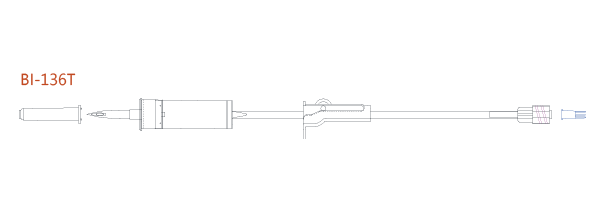

BI-136T

Infusion set, non-vented, universal spike:20 drops/ml, roller clamp, male luer lock, soft PVC, approximate set length:140cm, latex free.

BI-137 Series for General Hospitals

Order Number Description Product Drawing

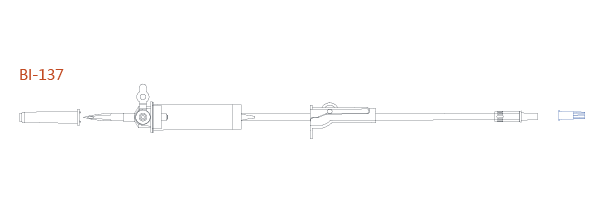

BI-137

Infusion set, vented, universal spike:20 drops/ml, roller clamp, male luer connector,
soft PVC, approximate set length:190cm, latex free.

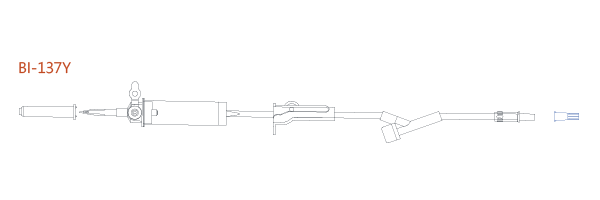

BI-137Y

Infusion set, vented, universal spike:20 drops/ml, roller clamp, Y connector or needleless Y connector, male luer connector, soft PVC, approximate set length:190cm, latex free.

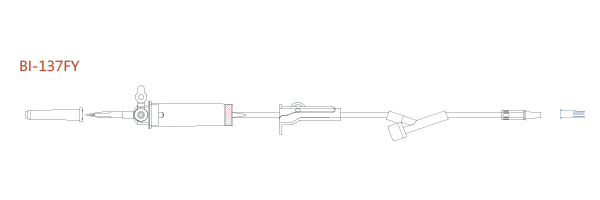

BI-137FY

Infusion set, vented, universal spike:20 drops/ml, roller clamp, Y connector or needleless Y connector, male luer connector, filter, soft PVC,approximate set length:190cm, latex free.

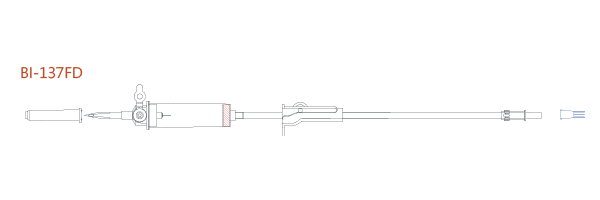

BI-137FD

Infusion set, vented, universal spike:60 drops/ml, roller clamp, male luer connector, filter, soft PVC,
approximate set length:190cm, latex free.

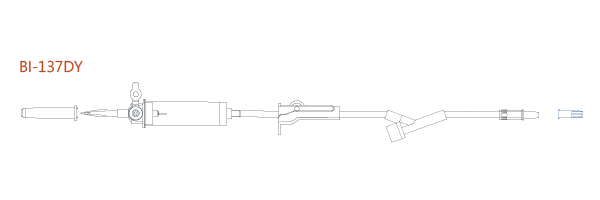

BI-137DY

Infusion set, vented, universal spike:60 drops/ml, roller clamp, needleless Y connector, male luer connector, soft PVC, approximate set length:190cm, latex free.

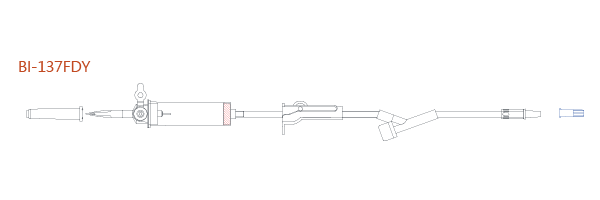

BI-137FDY

Infusion set, vented, universal spike:60 drops/ml, roller clamp, needleless Y connector, male luer connector, soft PVC, approximate set length:190cm, latex free.



Remark: Items are not CE-marked.

BI-137 Series for General Hospitals

Order Number Description Product Drawing

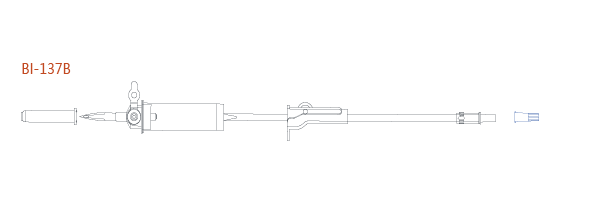

BI-137B

Infusion set, vented, universal spike:20 drops/ml, roller clamp, male luer connector,
55mm long, soft PVC, DEHP free, approximate set length:190cm, latex free.

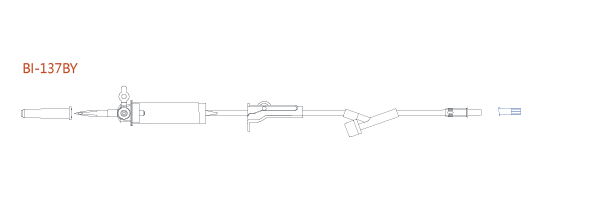

BI-137BY

Infusion set, vented, universal spike:20 drops/ml, roller clamp, Y connector or needleless Y connector, male luer connector, soft PVC, DEHP free, approximate set length:190cm, latex free.

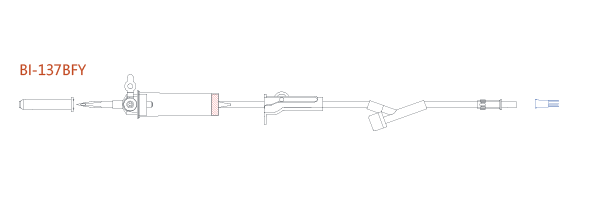

BI-137BFY

Infusion set, vented, universal spike:20 drops/ml, roller clamp, needleless Y connector, male luer connector, soft PVC, DEHP free, approximate set length:190cm, latex free.

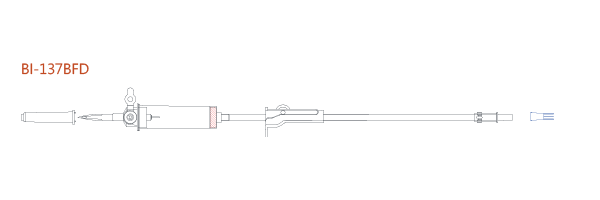

BI-137BFD

Infusion set, vented, universal spike:60 drops/ml, roller clamp, male luer connector,
filter, soft PVC, DEHP free, approximate set length:190cm, latex free.

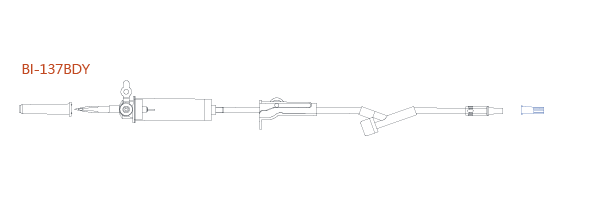

BI-137BDY

Infusion set, vented, universal spike:60 drops/ml, roller clamp, needleless Y connector, male luer connector, soft PVC, DEHP free, approximate set length:190cm, latex free.

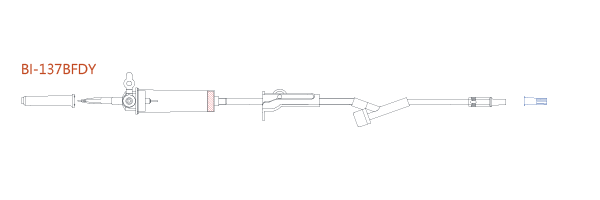

BI-137BFDY

Infusion set, vented, universal spike:60 drops/ml, roller clamp, needleless Y connector, male luer connector, filter, soft PVC, DEHP free, approximate set length:190cm, latex free.

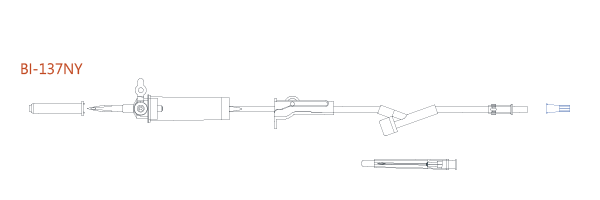

BI-137NY

Infusion set, Non-vented, universal spike:20 drops/ml, roller clamp, Y connector or needleless Y connector, male luer connector, soft PVC, disposable needle, approximate set length:190cm, latex free.

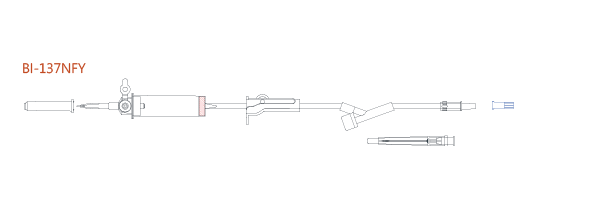

BI-137NFY

Infusion set, vented, universal spike:20 drops/ml, roller clamp, Y connector or needleless Y connector, male luer connector, filter, 55mm long, soft PVC, , disposable needle, approximate set length:190cm, latex free.

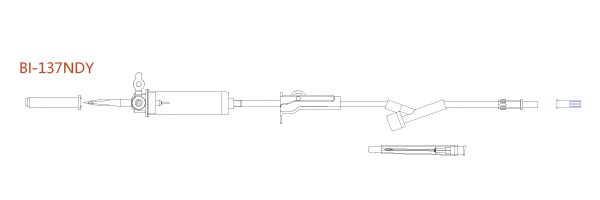

BI-137NDY

Infusion set, vented, universal spike:60 drops/ml, roller clamp, Y connector or needleless Y connector, male luer connector, soft PVC, disposable needle, approximate set length:190cm, latex free.

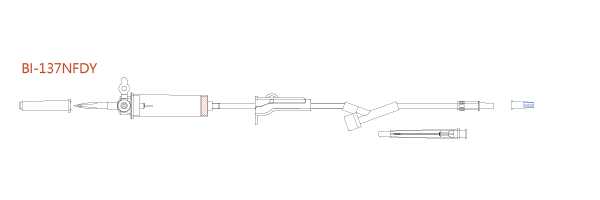

BI-137NFDY

Infusion set, vented, universal spike:60 drops/ml, roller clamp, Y connector or needleless Y connector, male luer connector, filter, soft PVC, disposable needle, approximate set length:190cm, latex free.

Remark: Items are not CE-marked.
