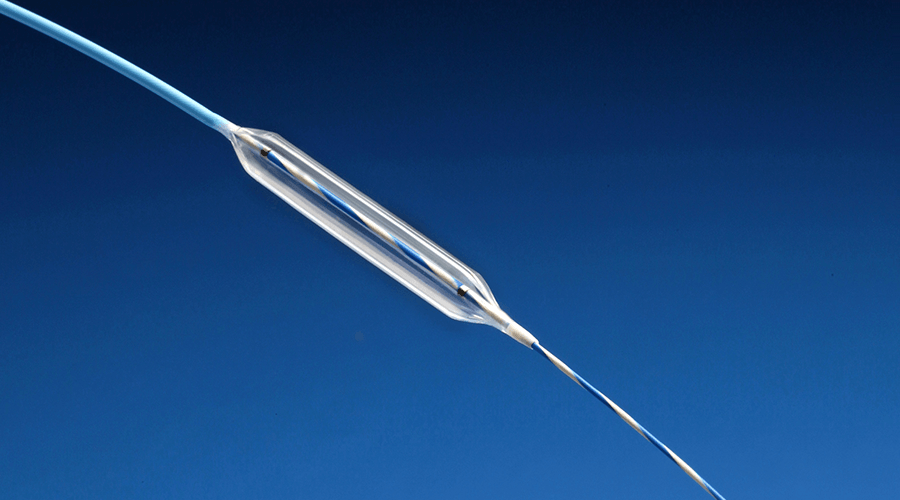

膽道球囊擴張導管
- 膽道球囊擴張導管適用於成人，用於 Oddi 括約肌的內窺鏡擴張，無論是否進行過括約肌切開術。
- 此球囊可用於注射造影劑以進行膽管的螢光透視。
- 適用於尺寸為 2.8 毫米、導管長度為 180 厘米、帶射線和錐形導管尖端的內視鏡。
規格
| Product Code | Balloon Diameter (mm) | Balloon Length (mm) | Nominal Pressure (atm) | Rated Burst Pressure (atm) | Catheter Length (cm) | Min. Endoscope Channel Size (mm) | Compatibility Guidewire |
|---|---|---|---|---|---|---|---|
| BT-BC-BD-4-20-180 | 4 | 20 | 6 | 21 | 180 | 2.8 | 0.035" |
| BT-BC-BD-4-30-180 | 4 | 30 | 6 | 21 | 180 | 2.8 | 0.035" |
| BT-BC-BD-4-40-180 | 4 | 40 | 6 | 21 | 180 | 2.8 | 0.035" |
| BT-BC-BD-6-20-180 | 6 | 20 | 6 | 23 | 180 | 2.8 | 0.035" |
| BT-BC-BD-6-30-180 | 6 | 30 | 6 | 23 | 180 | 2.8 | 0.035" |
| BT-BC-BD-6-40-180 | 6 | 40 | 6 | 23 | 180 | 2.8 | 0.035" |
| BT-BC-BD-8-20-180 | 8 | 20 | 4 | 15 | 180 | 2.8 | 0.035" |
| BT-BC-BD-8-30-180 | 8 | 30 | 4 | 15 | 180 | 2.8 | 0.035" |
| BT-BC-BD-8-40-180 | 8 | 40 | 4 | 15 | 180 | 2.8 | 0.035" |
| BT-BC-BD-10-20-180 | 10 | 20 | 6 | 9 | 180 | 2.8 | 0.035" |
| BT-BC-BD-10-30-180 | 10 | 30 | 6 | 9 | 180 | 2.8 | 0.035" |
| BT-BC-BD-10-40-180 | 10 | 40 | 6 | 9 | 180 | 2.8 | 0.035" |
