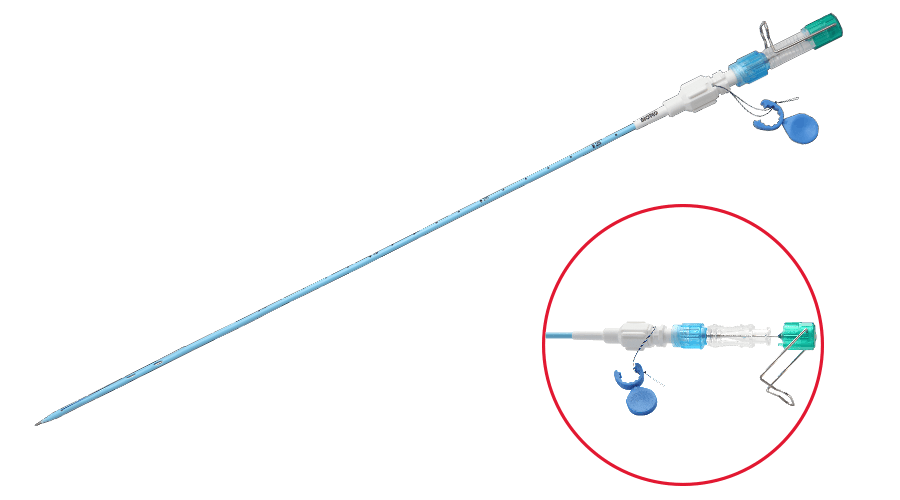

Snap Lock 引流導管組

BT-PD0-XXYY-SHN;BT-PD1-XXYY-SHN
Snap Lock 引流導管組
  • 單手操作, 使用於經皮腎造口術，膿瘍及其它用途的引流。
  • 分帶線及不帶線形式。
  • 7種不同的導管尖端構型符合手術需求。
  • 導管錐形尖端易於導入。
  • 針尖有超音波標記, 增加輻射透視度。
  • 引流導管組採用無菌消毒袋包裝, 限一次性使用。

    • 每一套組包含:

    • 引流導管
    • Snap Lock穿刺針(內針+外針)
產品線圖
規格

帶線

型號 尺寸 容許最大導絲線徑 工作長度 型號 尺寸 容許最大導絲線徑
BT-PD1-0620-W-SHN 6F .035 inch (0.89mm) 19 cm (XX=20) BT-PD1-1020-W-SHN 10F .038 inch (0.97mm)
BT-PD1-0625-W-SHN 6F .035 inch (0.89mm) 24 cm (XX=25) BT-PD1-1025-W-SHN 10F .038 inch (0.97mm)
BT-PD1-0630-W-SHN 6F .035 inch (0.89mm) 29 cm (XX=30) BT-PD1-1030-W-SHN 10F .038 inch (0.97mm)
BT-PD1-0635-W-SHN 6F .035 inch (0.89mm) 34 cm (XX=35) BT-PD1-1035-W-SHN 10F .038 inch (0.97mm)
BT-PD1-0640-W-SHN 6F .035 inch (0.89mm) 39 cm (XX=40) BT-PD1-1040-W-SHN 10F .038 inch (0.97mm)
BT-PD1-0645-W-SHN 6F .035 inch (0.89mm) 44 cm (XX=45) BT-PD1-1045-W-SHN 10F .038 inch (0.97mm)
BT-PD1-0650-W-SHN 6F .035 inch (0.89mm) 49 cm (XX=50) BT-PD1-1050-W-SHN 10F .038 inch (0.97mm)
BT-PD1-0720-W-SHN 7F .035 inch (0.89mm) 19 cm (XX=20) BT-PD1-1220-W-SHN 12F .038 inch (0.97mm)
BT-PD1-0725-W-SHN 7F .035 inch (0.89mm) 24 cm (XX=25) BT-PD1-1225-W-SHN 12F .038 inch (0.97mm)
BT-PD1-0730-W-SHN 7F .035 inch (0.89mm) 29 cm (XX=30) BT-PD1-1230-W-SHN 12F .038 inch (0.97mm)
BT-PD1-0735-W-SHN 7F .035 inch (0.89mm) 34 cm (XX=35) BT-PD1-1235-W-SHN 12F .038 inch (0.97mm)
BT-PD1-0740-W-SHN 7F .035 inch (0.89mm) 39 cm (XX=40) BT-PD1-1240-W-SHN 12F .038 inch (0.97mm)
BT-PD1-0745-W-SHN 7F .035 inch (0.89mm) 44 cm (XX=45) BT-PD1-1245-W-SHN 12F .038 inch (0.97mm)
BT-PD1-0750-W-SHN 7F .035 inch (0.89mm) 49 cm (XX=50) BT-PD1-1250-W-SHN 12F .038 inch (0.97mm)
BT-PD1-0820-W-SHN 8F .038 inch (0.97mm) 19 cm (XX=20) BT-PD1-1420-W-SHN 14F .038 inch (0.97mm)
BT-PD1-0825-W-SHN 8F .038 inch (0.97mm) 24 cm (XX=25) BT-PD1-1425-W-SHN 14F .038 inch (0.97mm)
BT-PD1-0830-W-SHN 8F .038 inch (0.97mm) 29 cm (XX=30) BT-PD1-1430-W-SHN 14F .038 inch (0.97mm)
BT-PD1-0835-W-SHN 8F .038 inch (0.97mm) 34 cm (XX=35) BT-PD1-1435-W-SHN 14F .038 inch (0.97mm)
BT-PD1-0840-W-SHN 8F .038 inch (0.97mm) 39 cm (XX=40) BT-PD1-1440-W-SHN 14F .038 inch (0.97mm)
BT-PD1-0845-W-SHN 8F .038 inch (0.97mm) 44 cm (XX=45) BT-PD1-1445-W-SHN 14F .038 inch (0.97mm)
BT-PD1-0850-W-SHN 8F .038 inch (0.97mm) 49 cm (XX=50) BT-PD1-1450-W-SHN 14F .038 inch (0.97mm)
BT-PD1-0920-W-SHN 9F .038 inch (0.97mm) 19 cm (XX=20) BT-PD1-1620-W-SHN 16F .038 inch (0.97mm)
BT-PD1-0925-W-SHN 9F .038 inch (0.97mm) 24 cm (XX=25) BT-PD1-1625-W-SHN 16F .038 inch (0.97mm)
BT-PD1-0930-W-SHN 9F .038 inch (0.97mm) 29 cm (XX=30) BT-PD1-1630-W-SHN 16F .038 inch (0.97mm)
BT-PD1-0935-W-SHN 9F .038 inch (0.97mm) 34 cm (XX=35) BT-PD1-1635-W-SHN 16F .038 inch (0.97mm)
BT-PD1-0940-W-SHN 9F .038 inch (0.97mm) 39 cm (XX=40) BT-PD1-1640-W-SHN 16F .038 inch (0.97mm)
BT-PD1-0945-W-SHN 9F .038 inch (0.97mm) 44 cm (XX=45) BT-PD1-1645-W-SHN 16F .038 inch (0.97mm)
BT-PD1-0950-W-SHN 9F .038 inch (0.97mm) 49 cm (XX=50) BT-PD1-1650-W-SHN 16F .038 inch (0.97mm)

註:無國際CE認證

不帶線

型號 尺寸 容許最大導絲線徑 工作長度 型號 尺寸 容許最大導絲線徑
BT-PD1-0520-SHN 5F .035 inch (0.89mm) 19 cm (XX=20) BT-PD1-1020-SHN 10F .038 inch (0.97mm)
BT-PD1-0525-SHN 5F .035 inch (0.89mm) 24 cm (XX=25) BT-PD1-1025-SHN 10F .038 inch (0.97mm)
BT-PD1-0530-SHN 5F .035 inch (0.89mm) 29 cm (XX=30) BT-PD1-1030-SHN 10F .038 inch (0.97mm)
BT-PD1-0535-SHN 5F .035 inch (0.89mm) 34 cm (XX=35) BT-PD1-1035-SHN 10F .038 inch (0.97mm)
BT-PD1-0540-SHN 5F .035 inch (0.89mm) 39 cm (XX=40) BT-PD1-1040-SHN 10F .038 inch (0.97mm)
BT-PD1-0545-SHN 5F .035 inch (0.89mm) 44 cm (XX=45) BT-PD1-1045-SHN 10F .038 inch (0.97mm)
BT-PD1-0550-SHN 5F .035 inch (0.89mm) 49 cm (XX=50) BT-PD1-1050-SHN 10F .038 inch (0.97mm)
BT-PD1-0620-SHN 6F .035 inch (0.89mm) 19 cm (XX=20) BT-PD1-1220-SHN 12F .038 inch (0.97mm)
BT-PD1-0625-SHN 6F .035 inch (0.89mm) 24 cm (XX=25) BT-PD1-1225-SHN 12F .038 inch (0.97mm)
BT-PD1-0630-SHN 6F .035 inch (0.89mm) 29 cm (XX=30) BT-PD1-1230-SHN 12F .038 inch (0.97mm)
BT-PD1-0635-SHN 6F .035 inch (0.89mm) 34 cm (XX=35) BT-PD1-1235-SHN 12F .038 inch (0.97mm)
BT-PD1-0640-SHN 6F .035 inch (0.89mm) 39 cm (XX=40) BT-PD1-1240-SHN 12F .038 inch (0.97mm)
BT-PD1-0645-SHN 6F .035 inch (0.89mm) 44 cm (XX=45) BT-PD1-1245-SHN 12F .038 inch (0.97mm)
BT-PD1-0650-SHN 6F .035 inch (0.89mm) 49 cm (XX=50) BT-PD1-1250-SHN 12F .038 inch (0.97mm)
BT-PD1-0720-SHN 7F .035 inch (0.89mm) 19 cm (XX=20) BT-PD1-1420-SHN 14F .038 inch (0.97mm)
BT-PD1-0725-SHN 7F .035 inch (0.89mm) 24 cm (XX=25) BT-PD1-1425-SHN 14F .038 inch (0.97mm)
BT-PD1-0730-SHN 7F .035 inch (0.89mm) 29 cm (XX=30) BT-PD1-1430-SHN 14F .038 inch (0.97mm)
BT-PD1-0735-SHN 7F .035 inch (0.89mm) 34 cm (XX=35) BT-PD1-1435-SHN 14F .038 inch (0.97mm)
BT-PD1-0740-SHN 7F .035 inch (0.89mm) 39 cm (XX=40) BT-PD1-1440-SHN 14F .038 inch (0.97mm)
BT-PD1-0745-SHN 7F .035 inch (0.89mm) 44 cm (XX=45) BT-PD1-1445-SHN 14F .038 inch (0.97mm)
BT-PD1-0750-SHN 7F .035 inch (0.89mm) 49 cm (XX=50) BT-PD1-1450-SHN 14F .038 inch (0.97mm)
BT-PD1-0820-SHN 8F .038 inch (0.97mm) 19 cm (XX=20) BT-PD1-1620-SHN 16F .038 inch (0.97mm)
BT-PD1-0825-SHN 8F .038 inch (0.97mm) 24 cm (XX=25) BT-PD1-1625-SHN 16F .038 inch (0.97mm)
BT-PD1-0830-SHN 8F .038 inch (0.97mm) 29 cm (XX=30) BT-PD1-1630-SHN 16F .038 inch (0.97mm)
BT-PD1-0835-SHN 8F .038 inch (0.97mm) 34 cm (XX=35) BT-PD1-1635-SHN 16F .038 inch (0.97mm)
BT-PD1-0840-SHN 8F .038 inch (0.97mm) 39 cm (XX=40) BT-PD1-1640-SHN 16F .038 inch (0.97mm)
BT-PD1-0845-SHN 8F .038 inch (0.97mm) 44 cm (XX=45) BT-PD1-1645-SHN 16F .038 inch (0.97mm)
BT-PD1-0850-SHN 8F .038 inch (0.97mm) 49 cm (XX=50) BT-PD1-1650-SHN 16F .038 inch (0.97mm)
BT-PD1-0920-SHN 9F .038 inch (0.97mm) 19 cm (XX=20)
BT-PD1-0925-SHN 9F .038 inch (0.97mm) 24 cm (XX=25)
BT-PD1-0930-SHN 9F .038 inch (0.97mm) 29 cm (XX=30)
BT-PD1-0935-SHN 9F .038 inch (0.97mm) 34 cm (XX=35)
BT-PD1-0940-SHN 9F .038 inch (0.97mm) 39 cm (XX=40)
BT-PD1-0945-SHN 9F .038 inch (0.97mm) 44 cm (XX=45)
BT-PD1-0950-SHN 9F .038 inch (0.97mm) 49 cm (XX=50)

註: 無國際CE認證
