Y Connector Set
- Y Connector set provides easier way for the doctor to operate in the PCI procedure.
- Screw Type and Push-Pull Type are available.
- Provides single one hand operated procedure which minimizes backflow and blood loss.
- Kit consists of Hemostasis Valve, sideon Female Luer, sideon Tubing and Stopcock, Insertion Tool with large hub, Red Copper Torquer.
- Large bore of torque device suits for all sizes of angiographic catheters.
- Supplied sterile in tray or sterile pouch. Intended for one-time use.
Specification

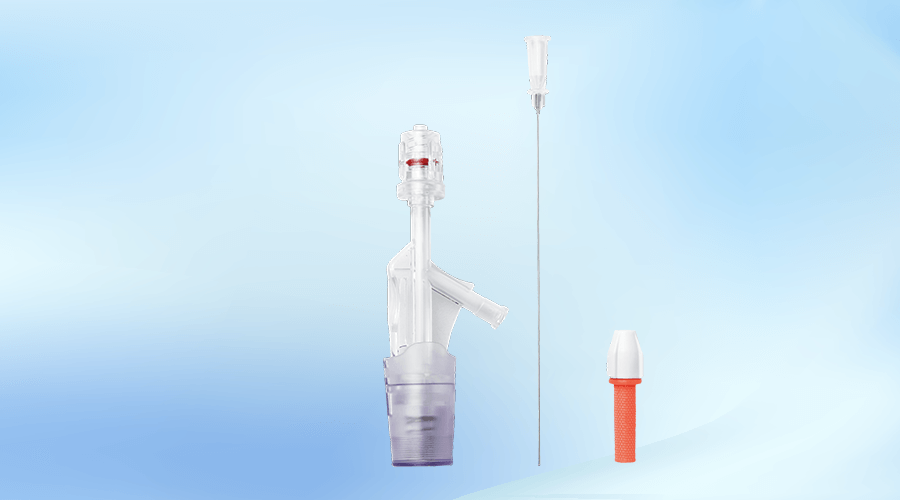

Y Connector Set– Push-Pull Type
| Product Code | Specifications |
|---|---|
| BT-HV-7PFLCR-TP | 7F, Push-Pull, Sideon Female Luer, Insertion Tool with Large Hub, Red/Cooper Torquer, Tyvek-plastic Pouch |
| BT-HV-7PPLCR-TP | 7F, Push-Pull , Sideon Tubing and Stopcock, Insertion Tool with Large Hub, Red/Cooper Torquer, Tyvek-plastic Pouch |
| BT-HV-7PFLCW-TP | 7F, Push-Pull , Sideon Tubing Female Luer Stopcock, Insertion Tool with Large Hub, White/Cooper Torquer, Tyvek-plastic Pouch |
| BT-HV-7PPLCW-TP | 7F, Push-Pull , Sideon Tubing and Stopcock, Insertion Tool with Large Hub, White/Cooper Torquer, Tyvek-plastic Pouch |
| BT-HV-7PFLPW-TP | 7F, Push-Pull , Sideon Female Luer, Insertion Tool with Large Hub,Plastic Copper Torquer, Tyvek-plastic Pouch |
| BT-HV-7PPLPW-TP | 7F, Push-Pull , Sideon Tubing and Stopcock, Insertion Tool with Large Hub,Plastic/Copper Torquer, Tyvek-plastic Pouch |

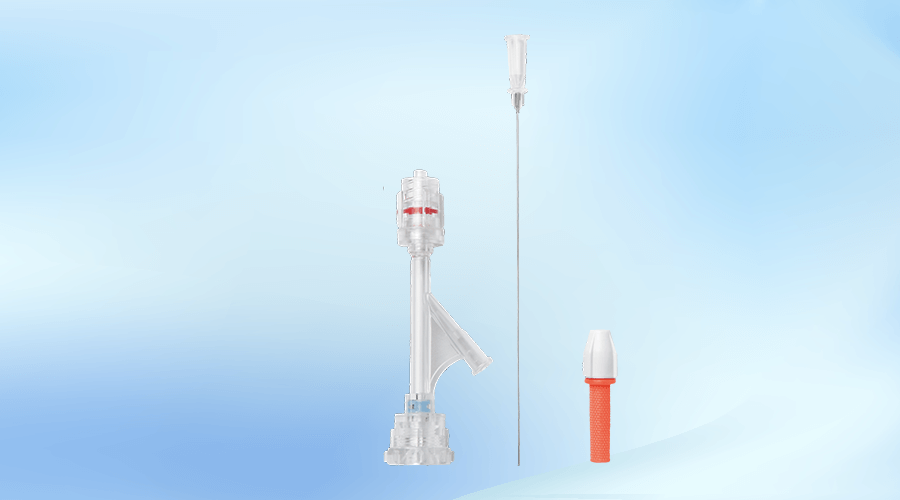

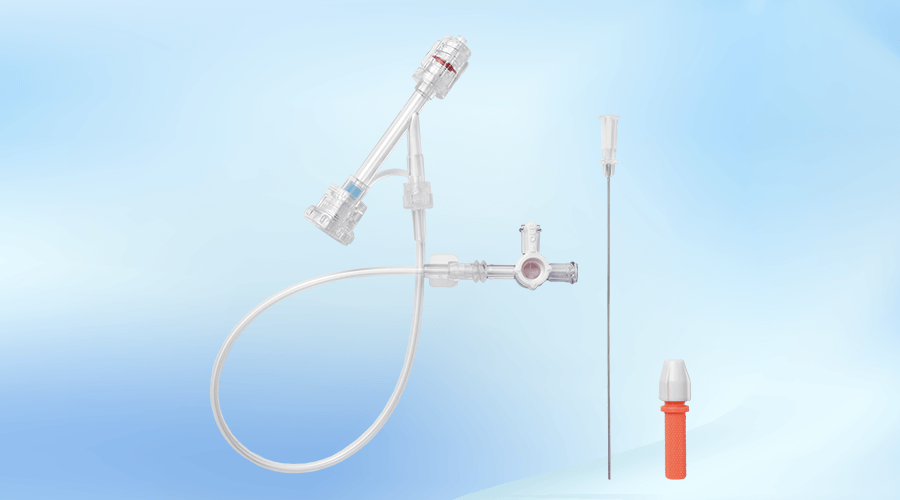

Y Connector Set– Screw Type
| Product Code | Specifications |
|---|---|
| BT-HV-7SFLCR-TP | 7F, Screw, Sideon Female Luer, Insertion Tool with Large Hub, Red/Cooper Torquer, Tyvek-plastic Pouch |
| BT-HV-7SPLCR-TP | 7F, Screw, Sideon Tubing and Stopcock, Insertion Tool with Large Hub, Red/Copper Torquer, Tyvek-plastic Pouch |
| BT-HV-7SFLCW-TP | 7F, Screw, Sideon Female Luer and Stopcock, Insertion Tool with Large Hub, White/Cooper Torquer, Tyvek-plastic Pouch |
| BT-HV-7SPLCW-TP | 7F, Screw , Sideon Tubing and Stopcock, Insertion Tool with Large Hub, White/Cooper Torquer, Tyvek-plastic Pouch |
| BT-HV-7SFLPW-TP | 7F, Screw, Sideon Female Luer, Insertion Tool with Large Hub, Red/Copper Torquer, Tyvek-plastic Pouch |
| BT-HV-7SPLPW-TP | 7F, Screw, Sideon Tubing and Stopcock, Insertion Tool with Large Hub,Plastic/Copper Torquer, Tyvek-plastic Pouch |
Remark:Items are CE marked.
