Oxygen Concentrator

BIO2
Oxygen Concentrator
  • Used for delivering oxygen to individuals with breathing-related disorders.

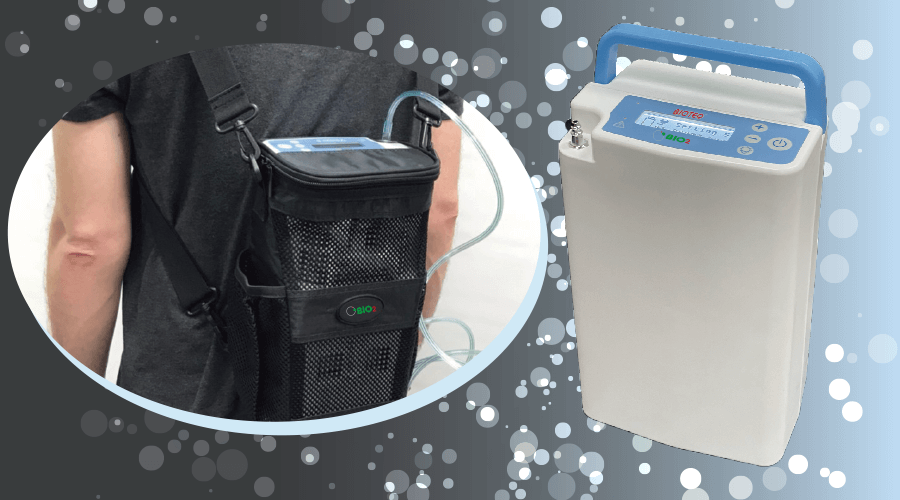

  • BIO2 oxygen concentrator is a portable oxygen concentrator using pulse dose flow technology that senses when you breathe in, and they supply you with oxygen every time the device senses an inhalation.
  • Light weight: With this compact design, they fit easily and discreetly into a shoulder bag.
  • Easy travelling: Smaller, lighter portable oxygen concentrators pack comfortably into any suitcase. Most units are FAA approved, so they can be used on domestic and international flights.
  • High Oxygen Output: The high oxygen output makes them just as effective as home units in meeting medical standards for oxygen therapy.
  • Battery Life:Up to 5 hours.

Each Set Includes

  • Oxygen concentrator
  • Nasal cannula
  • Power Cord
  • Carry bag
  • Adaptor
Specification

Pulse Dose Mode

BIO2 Description
Oxygen Concentration 87%〜 96% at all flow rates
Based on atomspheric of 14.7 psia(101kPa) at 21ﾟC
Setting 1〜 5 Setting
Power Requirements AC power: 100〜240 V AC(±10%)50/60Hz in, 16.8 V DC, 6 A out
DC power:12〜16.8 V DC in, 16.8 V DC out
Sound Level 45 dBA at setting 2
(when measured at 1m from front of device)
Alarm Type ☆Low oxygen purity ☆Technical fault
☆No breath ☆High breath rate
☆Low battery ☆Power failure
☆No flow
Outlet Presssure 6〜 15 psi
Dimension(mm) 115(L) x 158 (W) x 225(H) mm
Weight 4.84 LBS, 2.2 kgs(without internal battery)
Battery Duration Up to 5 Hours
Warranty 3 years / 1 years for accessories
Accesssories

Nasal Cannula
  Power cord
  Carry bag
  Adaptor



Flow settings and bolus size (ml)

BPM 1 2 3 4 5
15 11 22 33 44 55
20 11 22 33 44 50
25 11 22 33 40 40
30 11 22 33 33 33
35 11 22 30 30 30
40 11 22 25 25 25

Battery Duration

Setting Mins
1 300
2 230
3 195
4 140
5 110



Remark:Item is CE marked.
