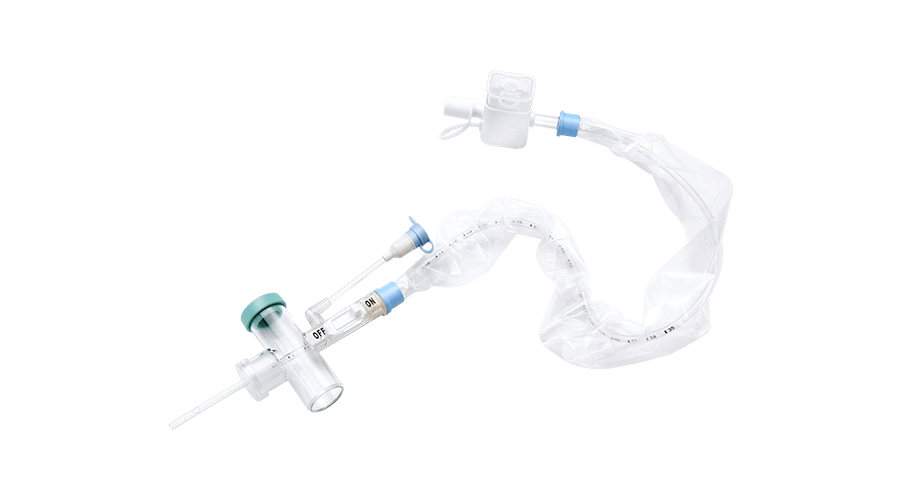

Closed Suction Catheter Set-72-Hour Adult T-piece Slide Valve type

Suction Jet 72-Hour Adult T-piece-Slide Valve Type
Closed Suction Catheter Set-72-Hour Adult T-piece Slide Valve type
  • Features safe and simple access  for caring mechanical ventilated patient (either tracheomized or endotracheal intubation) on continuous suction without breaking the circuit throughout patient’s time on the ventilator.
  • Clear T-Piece( 22mm OD x 15mm ID/22mm OD x 22mm OD) attached to the artificial airway with22 mm connections on both sides. Attaching Flex tube to one side of T-piece reduces volume of incoming air increase SaO2, connect ventilator breathing circuit to the other side.
  • It is indicated for 72 hours continuous use.
  • Switch button “ON”/”OFF design facilitate operation more easily.
  • Open Irrigation port/ One-way needleless Irrigation port/Luer lock irrigation port allows lavage and irrigation, prevent infiltration of secretions and ventilation leakage.
  • Replacement of closed suction system can be identified with color coded weekdays label.
  • Quality sheer Surlyn sleeve can facilitate operation when advancing the catheter, highly compact sleeve to effectively prevent infiltration of blood and sputum.
  • Texture of the suction tip is soft,  smooth nozzle without causing damage to mucous membranes.
  • Color coded Control switch for quick recognition of the catheter diameter.
  • Supplied sterile in peel-open packages. Intended for one-time use.
Specification
Model Catheter Size Length(mm) Control Button Type Packaging
BT-SC1-1054NTD7 10 Fr/3.3mm 540 Black T-Piece 10sets/case
BT-SC1-1254NTD7 12 Fr/4.0mm White Endotracheal
BT-SC1-1454NTD7 14 Fr/4.6mm Green Open Irrigation Port
BT-SC1-1654NTD7 16 Fr/5.3mm Orange 　
BT-SC2-1054NTD7 18 Fr/6.0mm 　 Black T-Piece 　
BT-SC2-1254NTD7 10 Fr/3.3mm 540 White Endotracheal 10sets/case
BT-SC2-1454NTD7 12 Fr/4.0mm Green One-way Needleless Irrigation Port
BT-SC2-1654NTD7 14 Fr/4.6mm Orange 　
BT-SC7-1054NTD7 16 Fr/5.3mm Black T-Piece
BT-SC7-1254NTD7 18 Fr/6.0mm 　 White Endotracheal 　
BT-SC7-1454NTD7 10 Fr/3.3mm 540 Green Luer Lock Irrigation Port 10sets/case
BT-SC7-1654NTD7 12 Fr/4.0mm Orange 　
BT-SC1-1036NTD7 14 Fr/4.6mm Black T-Piece
BT-SC1-1236NTD7 16 Fr/5.3mm White Tracheostomy
BT-SC1-1436NTD7 18 Fr/6.0mm 　 Green Open Irrigation Port 　
BT-SC1-1636NTD7 10 Fr/3.3mm 540 Orange 　 10sets/case
BT-SC2-1036NTD7 12 Fr/4.0mm Black T-Piece
BT-SC2-1236NTD7 14 Fr/4.6mm White Tracheostomy
BT-SC2-1436NTD7 16 Fr/5.3mm Green One-way Needleless Irrigation Port
BT-SC2-1636NTD7 18 Fr/6.0mm 　 Orange 　 　
BT-SC7-1036NTD7 10 Fr/3.3mm 540 Black T-Piece 10sets/case
BT-SC7-1236NTD7 12 Fr/4.0mm White Tracheostomy
BT-SC7-1436NTD7 14 Fr/4.6mm Green Luer Lock Irrigation Port
BT-SC7-1636NTD7 16 Fr/5.3mm Orange 　

  • SC1

  • SC2

  • SC7

  • (F:伸縮蛇管)

ACCESSORY CODE:(If Flex tube is desired, then include a C, F, CF in Model#.)
C: Pediatric Color catheter, if black number coded graduations catheters are desired, then goes without “C“.

BT-SCX-XXXXNECF:72 Hr Pediatric Elbow type+C(Pediatric Color catheter)+F(Flex Tube)

Remark: Items are not CE-marked.
