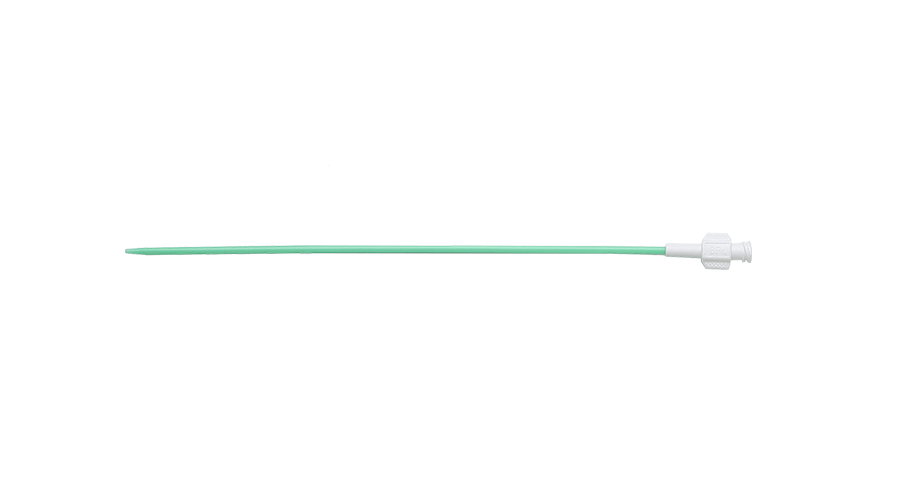

X 光下可顯影擴張器-單件式-經皮引流導管附屬配件

DR-ER;DR-PR
X 光下可顯影擴張器-單件式-經皮引流導管附屬配件



  • 以聚乙烯製造, X光下可顯影。
  • 符合ISO規範盧耳接頭, 便於顯影劑及其他溶液注射。
  • 採用無菌消毒袋包裝, 限一次性使用。
產品線稿
規格

ER:Polyethylene with Radiopaque

型號 尺寸 擴張管容許最大導絲線徑 工作長度 型號 尺寸 擴張管容許最大導絲線徑
DR-ER-1P-0505-28 5F 0.28"inch (0.71mm) 05cm(xx=05) DR-ER-1P-1005-38 10F 0.38"inch(0.97mm)
DR-ER-1P-0510-28 5F 0.28"inch (0.71mm) 10cm(xx=10) DR-ER-1P-1010-38 10F 0.38"inch(0.97mm)
DR-ER-1P-0515-28 5F 0.28"inch (0.71mm) 15cm(xx=15) DR-ER-1P-1015-38 10F 0.38"inch(0.97mm)
DR-ER-1P-0520-28 5F 0.28"inch (0.71mm) 20cm(xx=20) DR-ER-1P-1020-38 10F 0.38"inch(0.97mm)
DR-ER-1P-0525-28 5F 0.28"inch (0.71mm) 25cm(xx=25) DR-ER-1P-1025-38 10F 0.38"inch(0.97mm)
DR-ER-1P-0505-35 5F 0.35"inch(0.89mm) 05cm(xx=05) DR-ER-1P-1105-38 11F 0.38"inch(0.97mm)
DR-ER-1P-0510-35 5F 0.35"inch(0.89mm) 10cm(xx=10) DR-ER-1P-1110-38 11F 0.38"inch(0.97mm)
DR-ER-1P-0515-35 5F 0.35"inch(0.89mm) 15cm(xx=15) DR-ER-1P-1115-38 11F 0.38"inch(0.97mm)
DR-ER-1P-0520-35 5F 0.35"inch(0.89mm) 20cm(xx=20) DR-ER-1P-1120-38 11F 0.38"inch(0.97mm)
DR-ER-1P-0525-35 5F 0.35"inch(0.89mm) 25cm(xx=25) DR-ER-1P-1125-38 11F 0.38"inch(0.97mm)
DR-ER-1P-0505-38 5F 0.38"inch(0.97mm) 05cm(xx=05) DR-ER-1P-1305 13F 0.038 inch(0.97mm)
DR-ER-1P-0510-38 5F 0.38"inch(0.97mm) 10cm(xx=10) DR-ER-1P-1310 13F 0.038 inch(0.97mm)
DR-ER-1P-0515-38 5F 0.38"inch(0.97mm) 15cm(xx=15) DR-ER-1P-1315 13F 0.038 inch(0.97mm)
DR-ER-1P-0520-38 5F 0.38"inch(0.97mm) 20cm(xx=20) DR-ER-1P-1320 13F 0.038 inch(0.97mm)
DR-ER-1P-0525-38 5F 0.38"inch(0.97mm) 25cm(xx=25) DR-ER-1P-1325 13F 0.038 inch(0.97mm)
DR-ER-1P-0605 6F 0.38"inch(0.97mm) 05cm(xx=05) DR-ER-1P-1405 14F 0.038 inch(0.97mm)
DR-ER-1P-0610 6F 0.38"inch(0.97mm) 10cm(xx=10) DR-ER-1P-1410 14F 0.038 inch(0.97mm)
DR-ER-1P-0615 6F 0.38"inch(0.97mm) 15cm(xx=15) DR-ER-1P-1415 14F 0.038 inch(0.97mm)
DR-ER-1P-0620 6F 0.38"inch(0.97mm) 20cm(xx=20) DR-ER-1P-1420 14F 0.038 inch(0.97mm)
DR-ER-1P-0625 6F 0.38"inch(0.97mm) 25cm(xx=25) DR-ER-1P-1425 14F 0.038 inch(0.97mm)
DR-ER-1P-0705 7F 0.38"inch(0.97mm) 05cm(xx=05) DR-ER-1P-1505 15F 0.038 inch(0.97mm)
DR-ER-1P-0710 7F 0.38"inch(0.97mm) 10cm(xx=10) DR-ER-1P-1510 15F 0.038 inch(0.97mm)
DR-ER-1P-0715 7F 0.38"inch(0.97mm) 15cm(xx=15) DR-ER-1P-1515 15F 0.038 inch(0.97mm)
DR-ER-1P-0720 7F 0.38"inch(0.97mm) 20cm(xx=20) DR-ER-1P-1520 15F 0.038 inch(0.97mm)
DR-ER-1P-0725 7F 0.38"inch(0.97mm) 25cm(xx=25) DR-ER-1P-1525 15F 0.038 inch(0.97mm)
DR-ER-1P-0805-35 8F 0.38"inch(0.97mm) 05cm(xx=05) DR-ER-1P-1605 16F 0.038 inch(0.97mm)
DR-ER-1P-0810-35 8F 0.38"inch(0.97mm) 10cm(xx=10) DR-ER-1P-1610 16F 0.038 inch(0.97mm)
DR-ER-1P-0815-35 8F 0.38"inch(0.97mm) 15cm(xx=15) DR-ER-1P-1615 16F 0.038 inch(0.97mm)
DR-ER-1P-0820-35 8F 0.38"inch(0.97mm) 20cm(xx=20) DR-ER-1P-1620  16F 0.038 inch(0.97mm)
DR-ER-1P-0825-35 8F 0.38"inch(0.97mm) 25cm(xx=25) DR-ER-1P-1625 16F 0.038 inch(0.97mm)
DR-ER-1P-0805-38 8F 0.38"inch(0.97mm) 05cm(xx=05)
DR-ER-1P-0810-38 8F 0.38"inch(0.97mm) 10cm(xx=10)
DR-ER-1P-0815-38 8F 0.38"inch(0.97mm) 15cm(xx=15)
DR-ER-1P-0820-38 8F 0.38"inch(0.97mm) 20cm(xx=20)
DR-ER-1P-0825-38 8F 0.38"inch(0.97mm) 25cm(xx=25)
DR-ER-1P-0905-38 9F 0.38"inch(0.97mm) 05cm(xx=05)
DR-ER-1P-0910-38 9F 0.38"inch(0.97mm) 10cm(xx=10)
DR-ER-1P-0915-38 9F 0.38"inch(0.97mm) 15cm(xx=15)
DR-ER-1P-0920-38 9F 0.38"inch(0.97mm) 20cm(xx=20)
DR-ER-1P-0925-38 9F 0.38"inch(0.97mm) 25cm(xx=25)

註: 無國際CE認證

PR:Polypropylene with Radiopaque

型號 尺寸 擴張管容許最大導絲線徑 工作長度 型號 尺寸 擴張管容許最大導絲線徑
DR-PR-1P-0505 5F 0.028 inch(0.71mm) 05 cm (XX=05) DR-PR-1P-1105 11F 0.038 inch(0.97mm)
DR-PR-1P-0510 5F 0.028 inch(0.71mm) 10 cm (XX=10) DR-PR-1P-1110 11F 0.038 inch(0.97mm)
DR-PR-1P-0515 5F 0.028 inch(0.71mm) 15 cm (XX=15) DR-PR-1P-1115 11F 0.038 inch(0.97mm)
DR-PR-1P-0520 5F 0.028 inch(0.71mm) 20 cm (XX=20) DR-PR-1P-1120 11F 0.038 inch(0.97mm)
DR-PR-1P-0525 5F 0.028 inch(0.71mm) 25 cm (XX=25) DR-PR-1P-1125 11F 0.038 inch(0.97mm)
DR-PR-1P-0605 6F 0.038 inch(0.97mm) 05 cm (XX=05) DR-PR-1P-1205 12F 0.038 inch(0.97mm)
DR-PR-1P-0610 6F 0.038 inch(0.97mm) 10 cm (XX=10) DR-PR-1P-1210 12F 0.038 inch(0.97mm)
DR-PR-1P-0615 6F 0.038 inch(0.97mm) 15 cm (XX=15) DR-PR-1P-1215 12F 0.038 inch(0.97mm)
DR-PR-1P-0620 6F 0.038 inch(0.97mm) 20 cm (XX=20) DR-PR-1P-1220 12F 0.038 inch(0.97mm)
DR-PR-1P-0625 6F 0.038 inch(0.97mm) 25 cm (XX=25) DR-PR-1P-1225 12F 0.038 inch(0.97mm)
DR-PR-1P-0705 7F 0.038 inch(0.97mm) 05 cm (XX=05) DR-PR-1P-1305 13F 0.038 inch (0.97mm)
DR-PR-1P-0710 7F 0.038 inch(0.97mm) 10 cm (XX=10) DR-PR-1P-1310 13F 0.038 inch (0.97mm)
DR-PR-1P-0715 7F 0.038 inch(0.97mm) 15 cm (XX=15) DR-PR-1P-1315 13F 0.038 inch (0.97mm)
DR-PR-1P-0720 7F 0.038 inch(0.97mm) 20cm (XX=20) DR-PR-1P-1320 13F 0.038 inch (0.97mm)
DR-PR-1P-0725 7F 0.038 inch(0.97mm) 25cm (XX=25) DR-PR-1P-1325 13F 0.038 inch (0.97mm)
DR-PR-1P-0805 8F 0.038 inch(0.97mm) 05 cm (XX=05) DR-PR-1P-1405 14F 0.038 inch (0.97mm)
DR-PR-1P-0810 8F 0.038 inch(0.97mm) 10 cm (XX=10) DR-PR-1P-1410 14F 0.038 inch (0.97mm)
DR-PR-1P-0815 8F 0.038 inch(0.97mm) 15 cm (XX=15) DR-PR-1P-1415 14F 0.038 inch (0.97mm)
DR-PR-1P-0820 8F 0.038 inch(0.97mm) 20 cm (XX=20) DR-PR-1P-1420 14F 0.038 inch (0.97mm)
DR-PR-1P-0825 8F 0.038 inch(0.97mm) 25cm (XX=25) DR-PR-1P-1425 14F 0.038 inch (0.97mm)
DR-PR-1P-0905 9F 0.038 inch(0.97mm) 05 cm (XX=05) DR-PR-1P-1505 15F 0.038 inch (0.97mm)
DR-PR-1P-0910 9F 0.038 inch(0.97mm) 10 cm (XX=10) DR-PR-1P-1510 15F 0.038 inch (0.97mm)
DR-PR-1P-0915 9F 0.038 inch(0.97mm) 15 cm (XX=15) DR-PR-1P-1515 15F 0.038 inch (0.97mm)
DR-PR-1P-0920 9F 0.038 inch(0.97mm) 20 cm (XX=20) DR-PR-1P-1520 15F 0.038 inch (0.97mm)
DR-PR-1P-0925 9F 0.038 inch(0.97mm) 25cm (XX=25) DR-PR-1P-1525 15F 0.038 inch (0.97mm)
DR-PR-1P-1005 10F 0.038 inch(0.97mm) 05 cm (XX=05) DR-PR-1P-1605 16F 0.038 inch (0.97mm)
DR-PR-1P-1010 10F 0.038 inch(0.97mm) 10 cm (XX=10) DR-PR-1P-1610 16F 0.038 inch (0.97mm)
DR-PR-1P-1015 10F 0.038 inch(0.97mm) 15 cm (XX=15) DR-PR-1P-1615 16F 0.038 inch (0.97mm)
DR-PR-1P-1020 10F 0.038 inch(0.97mm) 20 cm (XX=20) DR-PR-1P-1620 16F 0.038 inch (0.97mm)
DR-PR-1P-1025 10F 0.038 inch(0.97mm) 25cm (XX=25) DR-PR-1P-1625 16F 0.038 inch (0.97mm)

註: 無國際CE認證
